In modern bulk material handling systems, conveyor belts are the backbone of efficiency, moving tons of materials seamlessly across industries—from mining and ports to construction and manufacturing. One of the most critical yet often overlooked components ensuring this smooth operation is the Bend Pulley. Understanding how a Bend Pulley works, what it does, and why it’s vital can help businesses enhance the reliability and longevity of their conveyor systems.

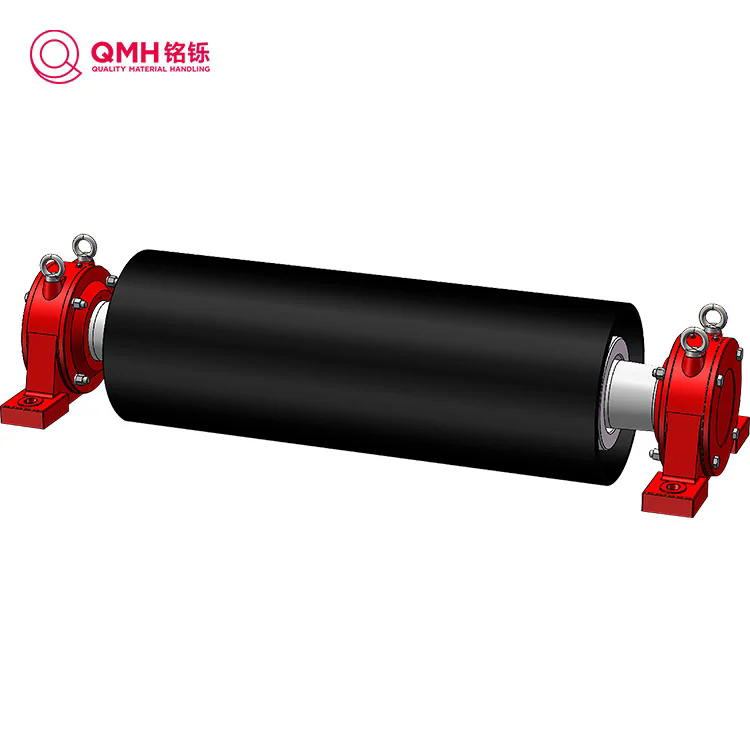

A Bend Pulley is a key element in a conveyor belt system, designed to redirect the belt’s movement or increase the contact area between the belt and the drive pulley. Typically located at the tail or discharge end of the conveyor, the bend pulley changes the belt’s direction—usually by 90° or 180°—while maintaining the required tension to prevent belt slippage.
Mechanically, it operates through frictional contact. As the belt moves, the Bend Pulley guides it smoothly around a curve, allowing the system to run continuously without losing grip or alignment. Its ability to manage the belt’s tension directly affects system performance, energy efficiency, and belt life.
In heavy-duty conveyor systems used in mining, cement plants, steel mills, and port terminals, the Bend Pulley helps reduce mechanical wear, absorb shock loads, and ensure smooth transitions in the belt path.
Redirects the conveyor belt in a smooth arc.
Enhances contact between the belt and drive pulley to prevent slippage.
Assists in maintaining proper belt tension and tracking.
Supports the belt in both loaded and unloaded conditions.
Reduces belt vibration and material spillage.
The efficiency of a conveyor system depends largely on how effectively power is transmitted and how evenly the belt tension is distributed. The Bend Pulley’s design, materials, and surface treatment all play significant roles in achieving this balance.
A high-quality Bend Pulley must withstand high tension forces and rotational stress. Therefore, materials like carbon steel, stainless steel, or cast iron are commonly used, depending on the application environment. The pulley shell thickness and shaft diameter are carefully calculated to handle the required load without deflection.
For improved durability, Bend Pulleys often feature precision-machined end discs and heavy-duty bearings, ensuring minimal vibration and optimal concentricity.
To enhance friction and wear resistance, the pulley surface can be lagged with rubber, ceramic, or polyurethane. Rubber lagging provides flexibility and grip, while ceramic lagging offers superior resistance to abrasion and moisture. The choice depends on the working environment—wet, dusty, or high-load conditions require more advanced lagging solutions.
Proper balancing ensures stable rotation and minimizes vibration. Misaligned or unbalanced pulleys can lead to belt mistracking, excessive noise, and premature wear. Modern manufacturers use dynamic balancing techniques to achieve smooth operation at high speeds.
| Parameter | Specification Range |
|---|---|
| Pulley Diameter | 200 mm – 1800 mm |
| Belt Width Compatibility | 400 mm – 2400 mm |
| Shaft Diameter | 50 mm – 350 mm |
| Shell Thickness | 8 mm – 30 mm |
| Surface Treatment Options | Rubber Lagging / Ceramic Lagging / Plain Steel |
| Material | Carbon Steel, Stainless Steel, Cast Iron |
| Balance Grade | ISO G6.3 or Better |
| Bearing Type | Heavy-Duty Spherical Roller Bearings |
| Application | Mining, Cement, Power, Port, and Quarry Industries |
This table illustrates how a Bend Pulley can be tailored for diverse operational needs, from light-duty conveyors in packaging lines to extreme-load systems in mining.
The right Bend Pulley can significantly enhance conveyor performance, minimize maintenance costs, and extend belt life.
One of the most vital functions of a Bend Pulley is keeping the conveyor belt properly aligned. Poor tracking leads to belt edge damage and material spillage. A precision-engineered pulley ensures consistent belt tension and helps maintain correct tracking throughout the system.
By maintaining proper friction and reducing slippage, the Bend Pulley improves power transmission efficiency, lowering the energy demand on the drive motor. Over time, this translates into substantial operational cost savings.
High-quality Bend Pulleys are designed for long service life. Anti-corrosive coatings, reinforced shells, and precision bearings prevent failure under heavy loads, reducing downtime and maintenance frequency.
From underground mining operations to humid port facilities, Bend Pulleys can be customized to resist corrosion, dust, and extreme temperatures, ensuring reliable operation under any condition.
Stable tension control prevents belt slip, which could otherwise cause system stoppages or accidents. This makes the Bend Pulley a vital component for maintaining conveyor safety and uptime.
Choosing the right Bend Pulley involves more than just size. It requires a holistic understanding of your conveyor’s working conditions, load capacity, and environmental challenges.
Always select a pulley diameter that matches the belt width and tension requirements. Undersized pulleys can cause excessive belt bending and premature wear.
For wet or abrasive environments, ceramic or hot-vulcanized rubber lagging is recommended. For indoor applications or clean materials, plain steel or smooth rubber lagging may suffice.
Ensure the pulley shaft is designed to handle both radial and axial loads. Bearings should be of industrial-grade quality, sealed against dust and moisture.
Choose a manufacturer that provides dynamic balancing according to ISO standards to prevent vibration and noise during high-speed operation.
Top-quality Bend Pulleys should comply with international standards such as CEMA, DIN, and ISO, guaranteeing safety and durability.
Q1: How often should a Bend Pulley be inspected or replaced?
A Bend Pulley should be visually inspected every 1,000 operating hours for signs of wear, misalignment, or lagging detachment. Under heavy-duty use, replacement may be necessary every 3–5 years, depending on the environment and load. Preventive maintenance helps detect bearing wear early and avoid costly system shutdowns.
Q2: What is the difference between a Bend Pulley and a Tail Pulley?
While both are located near the tail end of a conveyor system, the Tail Pulley serves as the pulley where the belt starts its return journey and is often connected to the take-up mechanism. The Bend Pulley, on the other hand, is used to change the belt direction or increase the wrap angle around the drive pulley, improving traction and tension balance.
A Bend Pulley may seem like a simple rotating drum, but its influence on conveyor performance is immense. From maintaining proper belt tracking and tension to minimizing energy loss and wear, it plays a central role in ensuring operational reliability. Choosing a high-quality Bend Pulley built with precision engineering, advanced lagging, and superior materials is an investment in your system’s long-term stability.
QMH specializes in manufacturing custom-engineered Bend Pulleys designed for diverse industrial applications. With robust construction, ISO-certified quality control, and a focus on long-lasting performance, QMH products help you achieve greater efficiency and reduced maintenance costs in your conveyor operations.
If you’re ready to upgrade or replace your existing Bend Pulley, contact us for expert consultation and technical support—our team will help you find the best solution for your specific conveyor needs.
