In modern bulk material handling, efficiency, stability, and adaptability determine whether a conveyor system can meet demanding industrial needs. The Sidewall Conveyor Belt Sidewall is designed to support high-inclination conveying, prevent spillage, and maintain continuous flow even in severe working conditions. When industries face space limitations, steep conveying angles, or uneven material shapes, this structure becomes indispensable. Qingdao Quality Material Handling Co., Ltd. focuses on providing durable and precisely engineered sidewall belts to improve operational productivity.

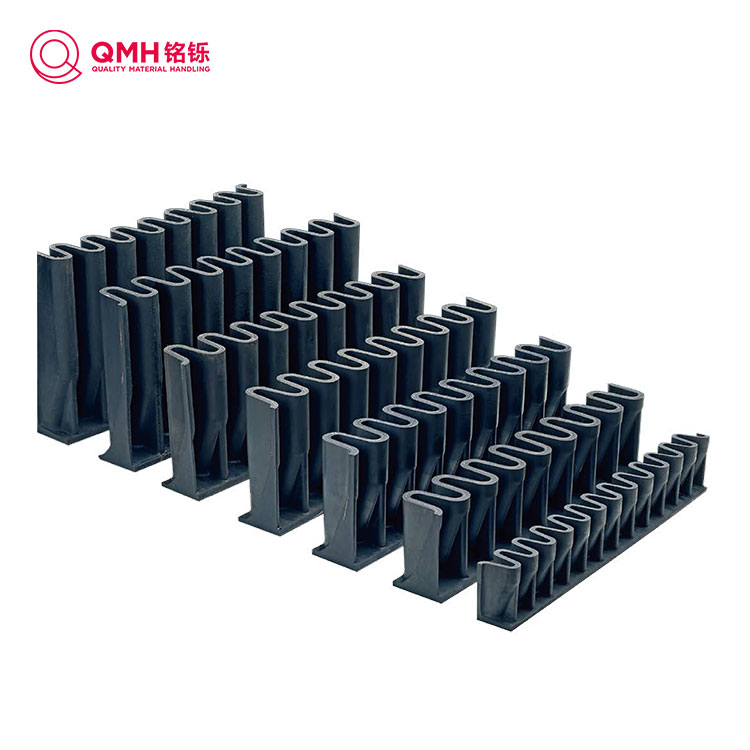

A Sidewall Conveyor Belt Sidewall is a reinforced vertical corrugated structure attached to both sides of a conveyor belt. Its purpose is to increase the belt's material-carrying capacity and prevent materials from falling off during elevation or steep-angle transfer operations. This design is widely used in mining, metallurgy, recycling, construction, chemical processing, and agriculture.
Core Features
Corrugated Profile: Allows flexibility and stability during steep-angle conveying.
High Tear Resistance: Prevents structural failure during heavy-duty operations.
Strong Adhesion: Ensures sidewall bonding strength even under continuous impact.
Custom Heights: Suitable for various material volumes and conveyor widths.
Oil, Heat, and Abrasion Resistance: Enhances durability in harsh working environments.
To ensure users can choose the correct model, Qingdao Quality Material Handling Co., Ltd. provides detailed parameters and optional configurations. Below is a simplified parameter table:
Sidewall Conveyor Belt Sidewall Technical Specifications
| Parameter | Specification Options |
|---|---|
| Sidewall Height (mm) | 40, 60, 80, 100, 120, 160, 200, 240, 300 |
| Base Belt Width (mm) | 300 – 2400 |
| Belt Fabric Ply | EP100/EP150/EP200/EP250/EP300 |
| Tensile Strength (N/mm) | 100 – 400 |
| Material Options | Rubber (NR/SBR), Heat-Resistant, Oil-Resistant, Flame-Resistant |
| Working Temperature (°C) | -20°C to 150°C (depending on material type) |
| Sidewall Type | Standard, Reinforced, High-Corrugation |
| Bonding Method | Cold Bonding / Hot Vulcanization |
| Maximum Inclination Angle | Up to 90° |
| Certification | ISO, SGS |
Additional Performance Advantages
Super strong sidewall–belt bonding
Anti-wave deformation
High load capacity
Long service life under continuous operation
The sidewall structure allows the conveyor belt to operate at angles between 30° and 90°, dramatically reducing the need for long horizontal conveyor systems. This leads to:
1. Space Optimization
Factories with limited space can use vertical conveying to maximize production efficiency.
2. Zero Material Spillage
The raised corrugated walls eliminate leakage of fine particles, bulk solids, granules, or irregular-shaped items.
3. Reduced Maintenance
Stable carrying performance decreases belt wear and mechanical failures.
4. Increased Throughput
More material can be carried per square meter due to the larger conveying chamber formed by the sidewalls.
5. Energy Efficiency
Shorter conveying routes require less power, lowering operational costs.
Smooth and Stable Conveying
The unique structure minimizes material tumbling and reduces vibration.
Versatile Application Compatibility
It integrates easily into existing conveying systems and can be designed for both horizontal and vertical transitions.
Highly Customizable
Different sidewall heights, belt fabrics, and rubber compounds are available depending on industrial needs.
Suitable for Harsh Materials
From fine powder to stones and metal scraps, it can handle many material types.
Helps Industries Operate Safely
Its durable construction reduces the risk of spillage-related accidents.
Supports High-Intensity Production
High-strength EP belting and reinforced sidewalls support 24/7 operations.
Reduces Material Waste
Prevents raw material loss during transport.
Ensures Reliable Continuity
Engineered by Qingdao Quality Material Handling Co., Ltd., each belt undergoes strict quality inspections for long-term reliability.
Selecting a high-quality sidewall belt can dramatically enhance overall productivity by:
Increasing conveyor system flexibility
Supporting steep and vertical movement
Reducing operational downtime
Enhancing workplace safety
Providing long-term cost savings
These benefits make it one of the most effective solutions for industrial-grade vertical conveying.
1. What is the purpose of a Sidewall Conveyor Belt Sidewall?
The sidewall prevents materials from spilling over the belt edges and allows the system to transport goods at steep or vertical angles, improving space utilization and safety.
2. How do I choose the right Sidewall Conveyor Belt Sidewall height?
Select based on material size, volume, and conveyor angle. Larger volumes or steeper inclines require higher sidewalls such as 200 mm or 300 mm.
3. What industries benefit most from using a Sidewall Conveyor Belt Sidewall?
Mining, metallurgy, cement plants, recycling, agriculture, and chemical production rely heavily on this design due to its efficiency in handling bulk materials.
4. How long does a Sidewall Conveyor Belt Sidewall typically last?
Its service life depends on the working environment and belt material. With quality rubber and strong bonding, it can operate reliably for several years under continuous use.
For customized Sidewall Conveyor Belt Sidewall solutions, technical support, or pricing, please contact us at Qingdao Quality Material Handling Co., Ltd. We provide high-performance conveyor systems designed for long-term industrial applications.
