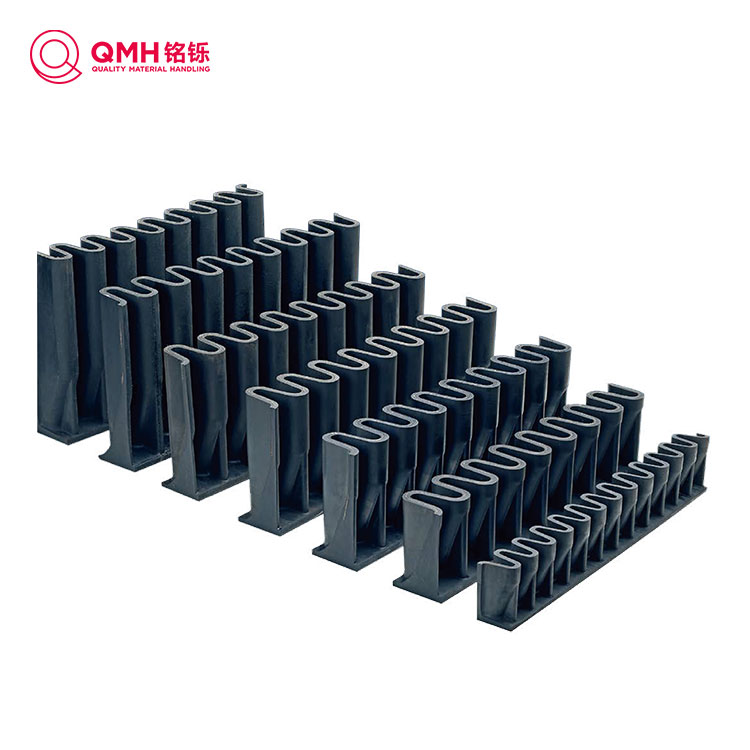

QMH sidewall conveyor belt sidewalls are designed in a corrugated shape to easily pass around pulleys. Their main function is to prevent materials from sliding or spilling off the conveyor belt.
Send InquiryQMH sidewall conveyor belt sidewall is incorporated with fabric reinforcement to effectively prevent cracks. QMH is the only manufacture in China to take European standard Dynamic Fatigue Testing to achieve 5million RPM which strongly ensures the belt reliability during operation.
·Specially designed rubber compound delivers excellent flexing and fatigue resistance.
·Sidewall is incorporated with fabric reinforcement to effectively prevent cracks.
·European standard dynamic fatigue testing simulates on-site working conditions to ensure product reliability.
·Abrasion-resistant
·High/moderate oil-resistant
·Heat-resistant (100/125/150/175℃)
·Flame-retardant
·Cold-resistant
·Flame-retardant
·Acid & Alkali-resistant
·Other Customized Types

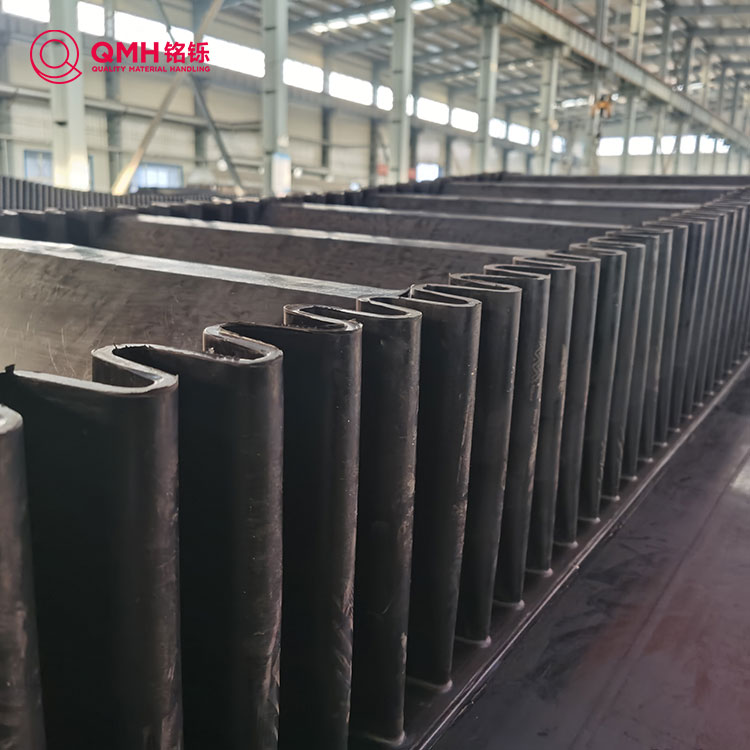

The sidewall of the sidewall conveyor belt serve as an integral part of the conveyor system, providing additional support and guidance for the conveyed materials. These sidewall, often referred to as corrugated sidewalls or wave-shaped sidewalls, are attached to the base belt and play a crucial role in preventing material spillage and ensuring smooth conveyance.
Material Composition:
The sidewalls are typically made of high-strength, high-wear-resistant materials that can withstand the rigors of conveying various materials.
The base belt, sidewalls, and cleats are often connected through secondary vulcanization, ensuring high connection strength and durability.
Functionality:
The sidewalls increase the conveying angle, allowing for more efficient vertical and inclined conveying.
They prevent materials from sliding or spilling off the conveyor belt, especially when conveying powdery, granular, small blocky, pasty, or liquid materials.
Design Flexibility:
QMH sidewalls can be designed to accommodate different conveying angles, ranging from 0 to 90 degrees.
They can be customized in terms of height, width, and material composition to suit specific conveying needs.
Durability and Maintenance:
QMH sidewalls are designed to withstand wear and tear, ensuring long-term performance.
QMH sidewalls require minimal maintenance and can be easily replaced or repaired when necessary.
Types of Sidewall Conveyor Belts:
Based on the performance of the covering rubber, QMH sidewall conveyor belts can be classified into various types, including:
Ordinary Type: Suitable for general conveying applications.
Heat-Resistant Type: Designed for high-temperature environments.
Flame-Retardant Type: Suitable for applications where fire safety is a concern.
Cold-Resistant Type: For conveying in low-temperature environments.
Acid and Alkali-Resistant Type: Resistant to chemical corrosion.
Oil-Resistant Type: Suitable for conveying oily materials.
In summary, the sidewalls of the sidewall conveyor belt are an essential component that enhances the functionality and efficiency of the conveyor system. They provide stability, prevent material spillage, and accommodate a wide range of conveying angles and materials. With their durability and design flexibility, they are an ideal choice for various conveying applications.
