QMH Chevron Conveyor Belt is molded and vulcanized in one continuous production process. Cleats are integrally vulcanized on the belt with high adhesion to prevent the materials from slipping or falling off the belt, especially on inclined surfaces.
Send InquiryThere are various types of patterns available from QMH, including but not limited to herringbone, zigzag, fishbone, U-shaped, cylindrical, and dimpled patterns. The QMH cleat height can range from 5mm to 32mm, and the pattern can be open or closed. Custom patterns can also be designed based on specific requirements. QMH chevron conveyor belts are suitable for conveying materials with inclines up to 40 degrees, including powdered, granular, lump materials, and bagged materials as well.
QMH chevron belts are a versatile and reliable solution for material handling applications, especially on inclined surfaces. Their unique chevron pattern and durable construction make them an ideal choice for demanding industrial environments.

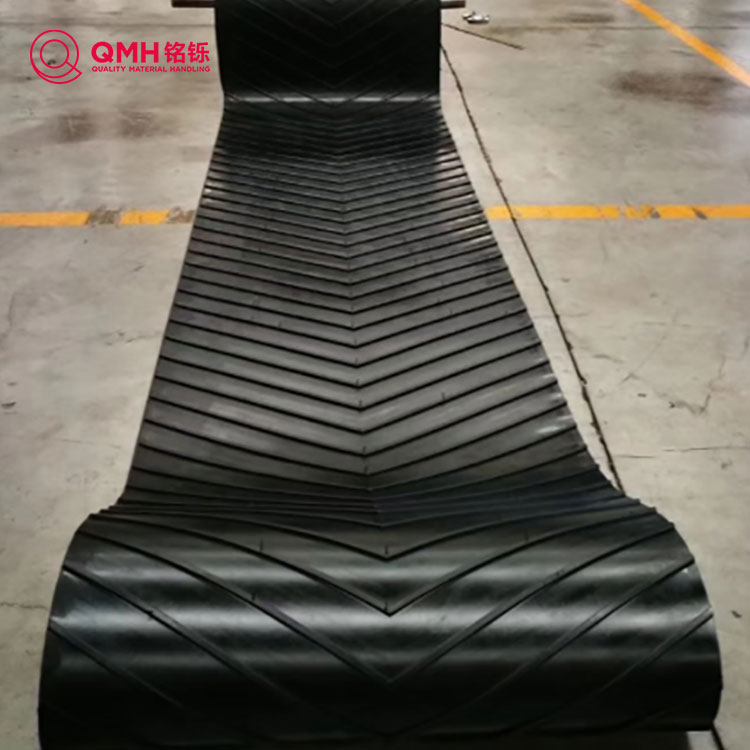

Definition: QMH chevron belt features a pattern of chevrons (V-shaped cleats) molded integrally onto the surface of the belt. These cleats are designed to prevent material from sliding backwards on the belt, especially on inclined surfaces.
Material: Typically made from rubber, with fabric or polyester as the reinforcing material inside.
Features: Oil-resistant, acid and alkali resistant, tear-resistant, and wear-resistant.
Open Type and Closed Type: QMH chevron belts come in both open and closed types, with different cleat designs to cater to various materials and applications.

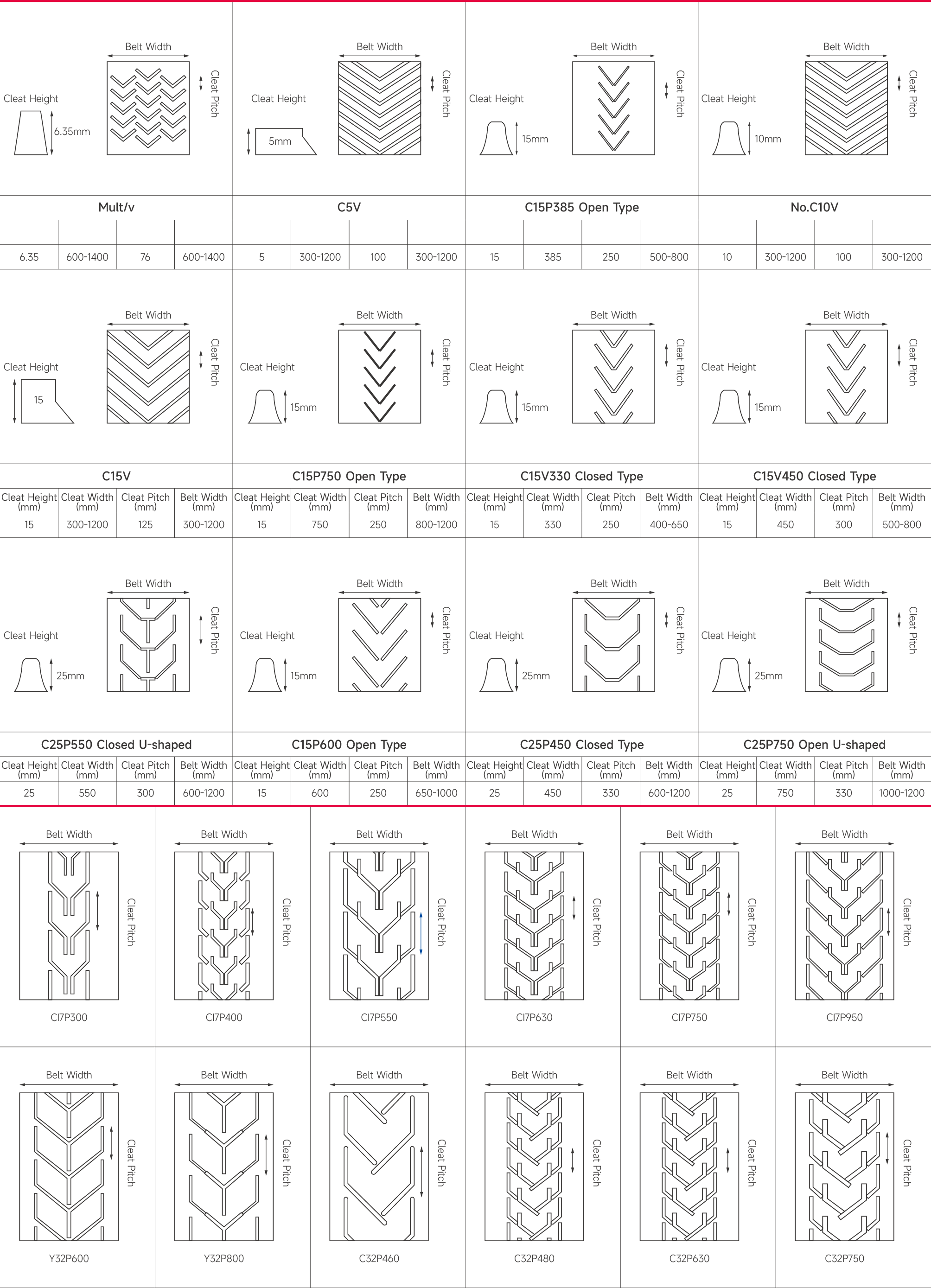

Cleat Height and Pattern: The height and pattern of the chevrons can vary, with options such as C5, C15, and other customized patterns. The cleat height can range from a few millimeters to several centimeters.
·Cleats are integrally vulcanized on the belt with high adhesion to prevent coming off.
·Various pattern designs are available to meet conveying inclination angles.
·High flexibility and excellent performance ensures excellent performance and longer service life.
·Cleat Height: 5mm, 8mm, 10mm, 15mm, 17mm, 20mm, 25mm, 32mm
·Belt Width: 300~2000mm

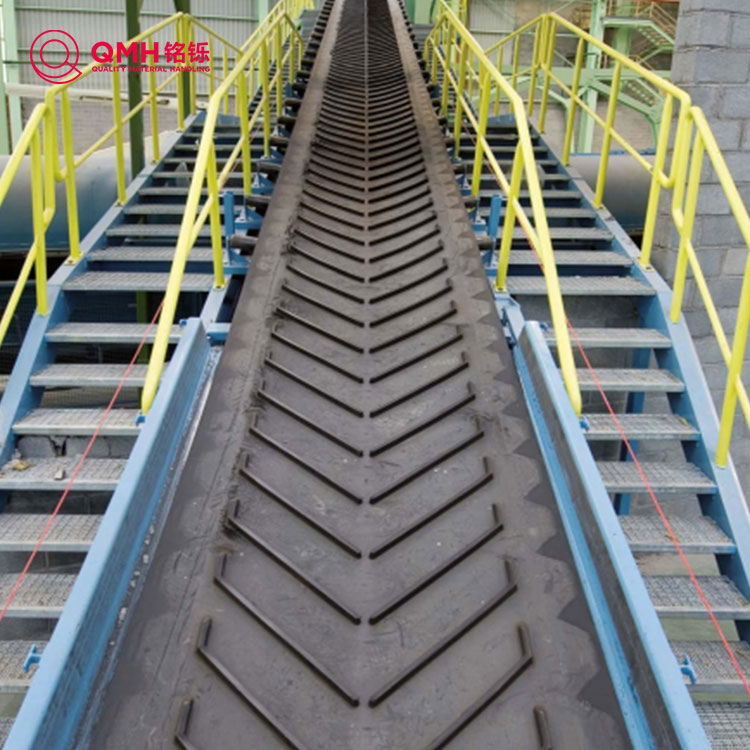

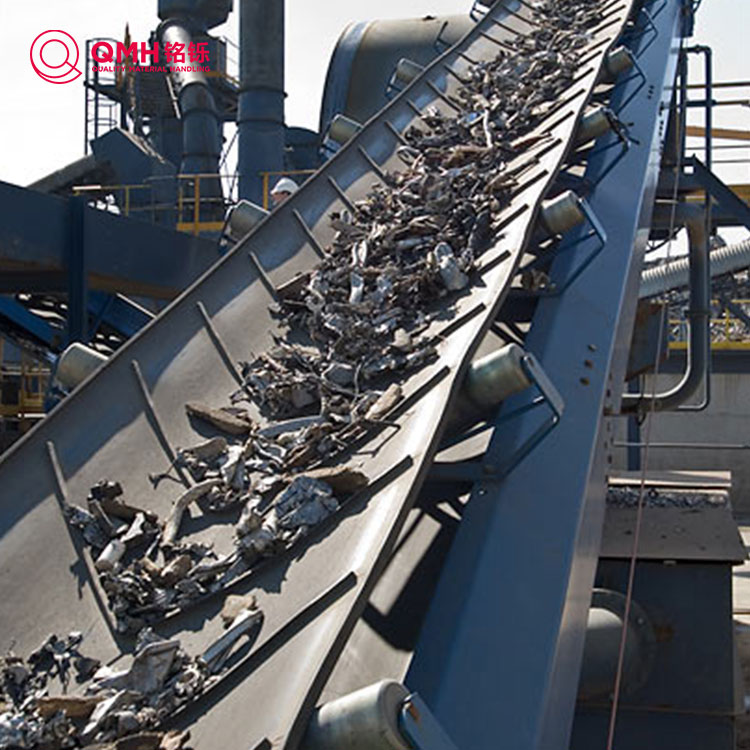

QMH Chevron belts are designed for sand and gravel, crushed rock, wood chip, coal and iron, bagged material, grains, road construction, waste management and barge and railroad car unloading. QMH Chevron belts are primarily used in situations where the angle of incline is too steep for a smooth conventional conveyor belt. They are suitable for conveying loose, bulky, or bagged materials such as powder, granule, and other bulk or packaged materials. The maximum incline angle can be up to 40-45 degrees, depending on the specific design and material of the belt.
QMH chevron belts are widely used in industries such as metallurgy, coal mining, cement production, and other heavy industries where efficient and reliable material handling is crucial. They are also used in agricultural, food processing, and other sectors where the conveyance of bulk or packaged materials is required.
·Flame-retardant
·Abrasion-resistant
·Acid & Alkali-resistant
·Heat-resistant
·Oil-resistant
·Cold-resistant
Tensile Strength: The tensile strength of chevron belts is typically high, ensuring durability and reliability in demanding applications.
Elongation at Break: The belt's ability to elongate before breaking is also an important specification, ensuring that the belt can withstand stretching and deformation without failing.
Adhesive Strength: The adhesive strength between the carcass (reinforcing material) and the cover (rubber surface) is crucial for maintaining the integrity of the belt.
Improved Material Handling: QMH chevron pattern prevents material from sliding back, improving the efficiency and reliability of the conveyor system.
Durability: Made from high-quality materials, QMH chevron belts are resistant to wear, tear, oil, and chemicals, ensuring long service life.
Flexibility: Available in various widths, lengths, and cleat designs, chevron belts can be customized to fit specific applications and requirements.
