In today’s highly automated manufacturing and logistics industries, the efficiency of a production line depends heavily on the reliability of its conveyor system. At the heart of that system are the Conveyor Components — the pulleys, idlers, bearings, and structural parts that ensure smooth, consistent, and safe material movement. Whether in mining, warehousing, food processing, or bulk handling plants, these components define how efficiently materials flow from one process to another. A single failure in a pulley or idler can cause hours of downtime, leading to significant production losses and costly repairs.
Why Conveyor Components Matter: Key Questions
What Are Pulley & Idler Components in Conveyor Systems?
How to Choose Conveyor Components: Specifications & Best Practices
QMH Brand & Next Steps — Contact Us
Conveyor systems power material movement in factories, mines, logistics, mills. Choosing the right components ensures uptime, cost efficiency, and longer service life.
Poorly selected or low-quality parts lead to unplanned downtime, belt misalignment, excessive wear, and maintenance costs.
As industrial automation and logistics demand tighter throughput, optimization at the component level (pulleys, idlers, rollers) becomes a competitive advantage.
To replace failing components, upgrade capacity, or adapt conveyors to new loads or environments.
To find specification sheets, compatibility, standards (e.g. CEMA), and pricing.
To compare suppliers, quality, warranties, and lead times.
You must present educational value: deeper explanations, comparative data, and use cases beyond marketing hype.
Show you understand typical problems (“how to reduce belt wear”, “how to calculate idler spacing”).
Use FAQ, tables, realistic specs. That builds trust and encourages conversion.
With that strategic framing, we now turn to the core content: what exactly are these components and how to choose them.
In a conveyor belt system, Conveyor Components often refer to pulleys, idlers (rollers), supports, bearings, and accessories. Below we focus on the two fundamental subtypes: Pulley and Idler.
A pulley is the rotating drum around which the conveyor belt wraps. It plays several roles depending on location (drive pulley, tail pulley, bend / snub pulley, take-up pulley).

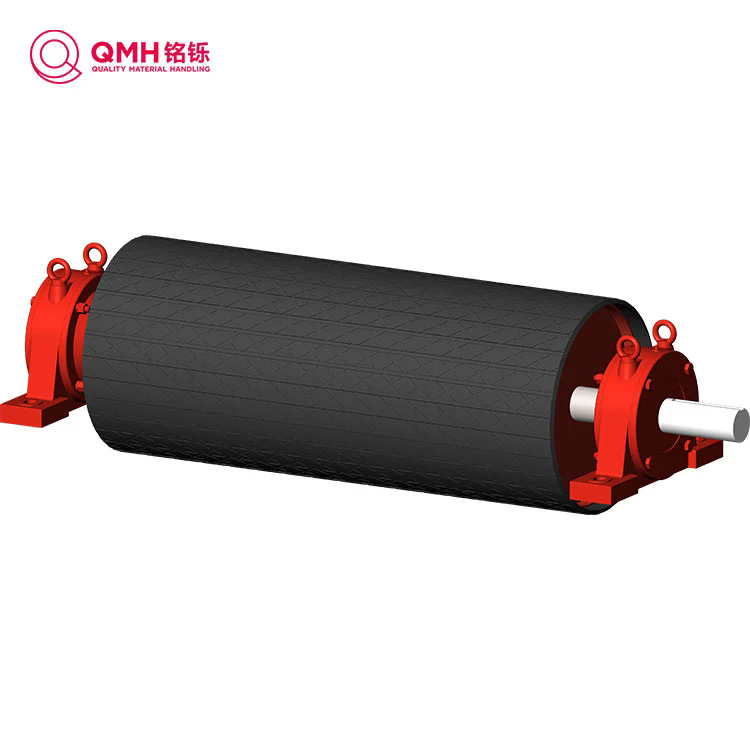

Drive (Head) Pulley: driven by a motor, transmits torque to move the belt.
Tail / Return Pulley: redirects the belt back to the drive end.
Snub / Bend Pulley: increases wrap angle around the drive pulley to improve traction.
Take-up Pulley: adjusts tension, removing slack from the belt system.
Steering / Bend Pulleys: used in curved or angled segments.
| Parameter Name | Description | Common Range or Notes |
|---|---|---|
| Core Diameter | Inner cylinder diameter (excluding coating) | e.g. 6″ to 24″+ depending on belt width |
| Face Width (Face Length) | Width of cylindrical portion where belt contacts | Typically matches belt width, plus allowance |
| Wall / Rim Thickness | Thickness of the shell | Depends on mechanical stress design |
| End Disks / Flanges | The discs welded to ends | Act as interface between hub and shell |
| Coating / Lagging | Rubber, ceramic, urethane, others | Enhances friction or wear resistance |
| Shaft & Bearings | Bearing housing, shaft bore, seals | Must suit load, alignment, environment |
| Load Rating / Max Torque | Maximum radial load or torque allowed | Based on design, factor of safety |
| Speed (RPM) | Max rotational speed | Depends on bearing limits and belt speed |
Pulley Design Considerations
The pulley must properly match belt width, thickness, and tension requirements.
Lagging/coating may be added to increase traction or resist abrasion.
End disc strength, welding quality, and hub design are critical for durability.
Bearing selection (sealed, shielded, maintenance) affects lifetime.
Static and dynamic balancing reduces vibration and prolongs life.
An idler (or return roll / idler roller) is a non-driven cylindrical component that supports the belt and the load (or supports the return side of the belt).
Troughing Idlers: support the loaded belt in a trough shape (commonly 3-roll sets: side, center).

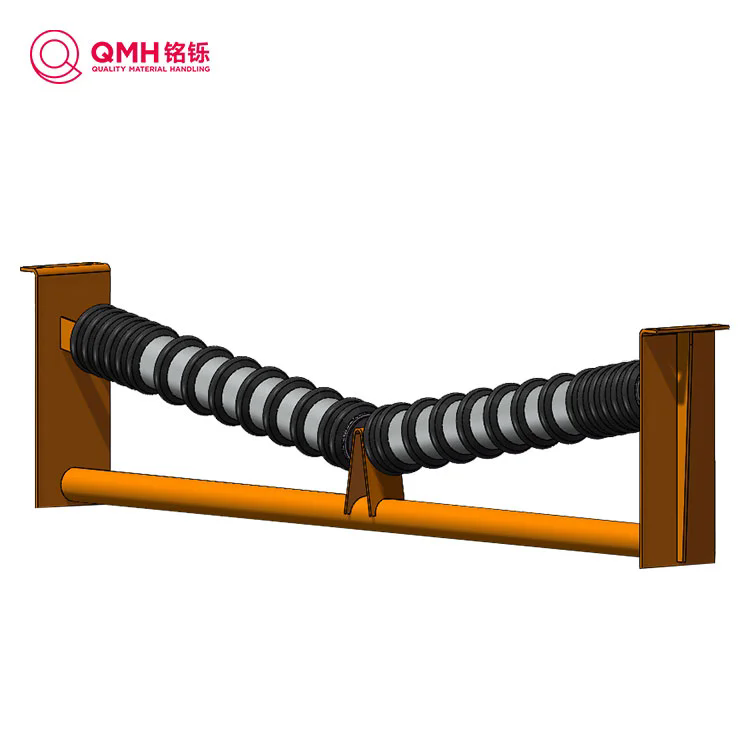

Impact Idlers: placed at loading points to absorb impact and protect belt.
Return / Return Side Idlers: support the belt on its return path, minimizing sag.
Self-aligning / Self-centering Idlers: help realign belts that wander.
Flat / Channel Idlers: for flat belt runs or transition sections.
| Specification | Description | Example / Typical Values |
|---|---|---|
| Roll Diameter | The outer diameter of the roller shell | 3″, 4″, 5″, 6″ etc per CEMA standard |
| Roll Length / Shell Length | Length of the cylindrical shell | Matches belt width / plus overhang |
| Bearing Type & Size | Deep-groove ball, tapered roller, sealed etc | Chosen based on load and speed |
| Seal & Lubrication | Sealed-for-life, labyrinth, greaseable | Lower maintenance if sealed |
| Load Rating / Carrying Capacity | Max radial load per roller | Scaled by CEMA class |
| Frame / Bracket | Structural support for rollers | Must match conveyor frame geometry |
| Spacing (Roller Pitch) | Distance between successive idlers | Design parameter to limit sag |
CEMA (Conveyor Equipment Manufacturers Assn.) standards define classes (B, C, D, E, F) which govern load capacities, belt widths, spacing, etc.
For example, Precision Pulley & Idler C4-20TEI-48SB is an idler with:
Troughing Equal Impact (TEI) type
4 in roll diameter, 48 in belt width, CEMA C rating
Sealed ball bearings
Labyrinth/contact seals
Overall length: ~59.5 in
The idlers must handle radial and axial loads, resist misalignment, minimize friction, and endure environmental stress (dust, moisture, temperature).
This is the crux of your customers’ decision-making. Provide a structured “how” path.
Material characteristics: bulk density, lump size, abrasiveness, moisture, corrosivity.
Belt parameters: width, thickness, speed, tension profile.
Load and throughput: maximum weight per linear foot or per segment.
Environmental factors: dust, temperature extremes, humidity, corrosive agents.
Layout geometry: straight, inclined, curved, transitions.
Size core diameter and face width to match belt dimension and contact wrap requirements.
Choose appropriate lagging or coating (rubber, ceramic) if high friction or gritty materials.
Confirm torque, power, and safety margin.
Proper bearings and sealing are critical — sealed or greaseable type as needed.
Balance the assembly to reduce vibration.
Troughing sets: choose 20°, 35°, or 45° angle sets per load.
Spacing: adequate to limit belt sag — often < 1/90 of belt span, or per CEMA.
Impact idlers: place under feed zones with shock absorption features.
Return idlers: spaced to limit catenary sag.
Choose sealed-for-life bearings for low maintenance.
Use self-aligning idlers where belt wandering is a problem.
Perform load and stress analysis to confirm radial capacity.
Check bearing life / L10 life predictions.
Check alignment tolerances.
Ensure structural supports can bear loads and moments.
Use modular or drop-in idler designs to simplify swaps.
Use long-life seals and avoid designs that require frequent re-lubrication in harsh environments.
Maintain spares of high-wear parts (shells, bearings).
Monitor vibration, temperature, noise for early warning.
Q1: What is the allowable spacing between idlers?
A1: Spacing depends on belt stiffness, load, speed, and allowable sag. As a rule of thumb, keep spacing such that sag is < 1 inch between successive rollers under load; typically between 24″ and 48″ for standard load conveyor (but refer to CEMA tables).
Q2: How do I size a drive pulley correctly?
A2: Start with belt width, thickness, and tension requirement. Then define torque, choose core diameter, lagging if needed, and ensure the bearing/shaft design can handle radial and bending loads. Use safety margins (e.g. 1.5× expected torque).
Q3: When should I choose self-aligning idlers?
A3: Use self-aligning idlers when belt misalignment is common due to dynamic loads, slight frame shifts, or uneven loading. They allow small angular correction, reducing edge wear.
At QMH, we understand the precision, durability, and customization needs of heavy-duty conveyor systems. Our range of Conveyor Components is engineered to match the toughest industrial specifications — from custom pulleys to sealed-for-life idlers designed for harsh environments. As you evaluate suppliers and designs, partner with QMH to ensure:
Detailed spec sheets and engineering support
Modular and maintenance-friendly designs
High-quality materials, precision welding, and rigorous testing
Responsive supply and spare parts availability
Let’s help you design or upgrade your conveyor systems with confidence. Contact us today to request a quotation, get a detailed drawing, or consult on component selection.
