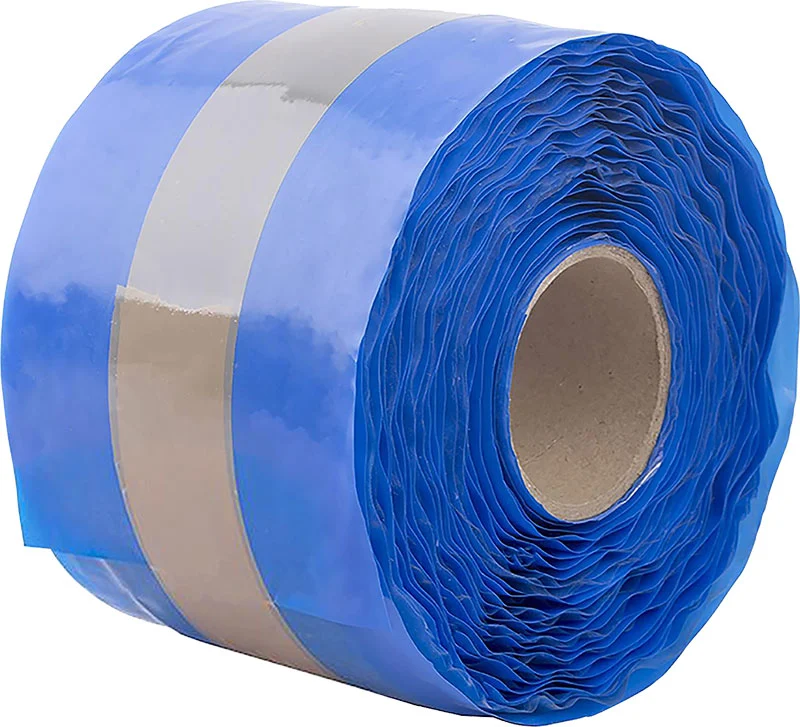

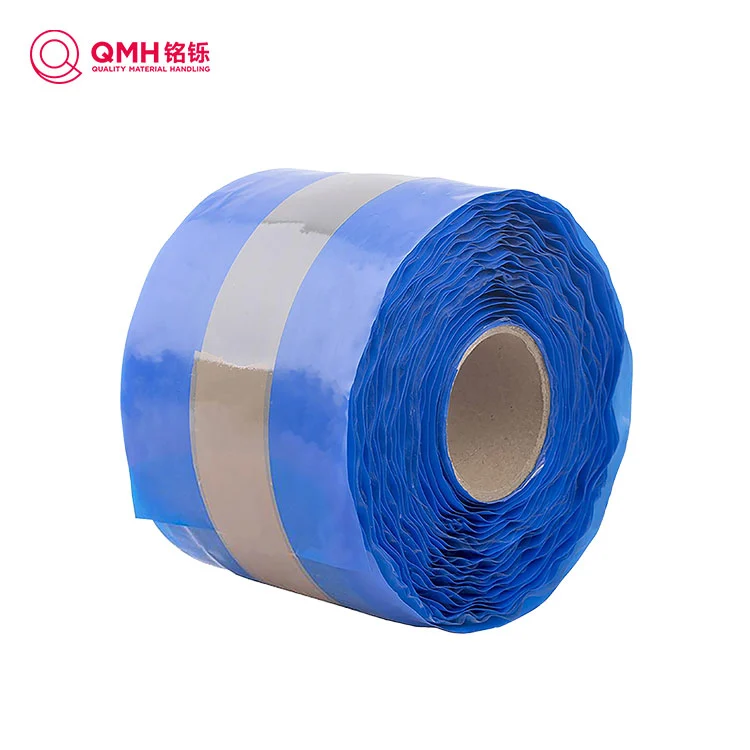

QMH conveyor belt fast repair sheet is a material used to quickly repair damaged or cracked objects such as conveyor belts, rubber products, and pipes. It is tensile, wear-resistant, and corrosion-resistant, and has a prefabricated semi-vulcanized layer on the back (with CN layer/with semi-vulcanized layer). QMH ordinary fast repair sheets are suitable for repairing long-distance rubber scratches on conveyor belts, and QMH reinforced fast repair sheets are suitable for repairing various conveyor belt tears and structural damage. Available size for ordinary fast repair sheets: 1.5*35*10000mm/roll, 3.0*50*10000mm/roll, 3.4*400*10000mm/roll. For reinforced repair sheet: 2.8*35*10000mm/roll, 3.6*100*10000mm/roll, 4.8*400*10000mm/roll.
Send Inquiry
1. Fast Curing Performance
The conveyor belt fast repair sheet can complete curing within a few minutes to more than ten minutes, effectively shortening on-site maintenance time, helping equipment resume operation quickly and reducing production interruption caused by damage.
2. High Bonding Strength
It has stable adhesion performance, can form a tight fit with the repaired surface, and has good pressure resistance, tension resistance and impact resistance, ensuring the durability of the repaired part and reducing secondary damage.
3. Excellent Flexibility
After curing, it maintains good flexibility, can adapt to the deformation, bending and vibration of the conveyor belt and other equipment, and is not easy to crack or fall off during long-term use.
4. Simple Operation
No complex tools or professional skills are required. It can be used by pasting and pressing or winding, and ordinary operators can quickly master the construction method.
5. Wide Application Range
Suitable for rubber, plastic, metal and other material parts repair, applicable to scratches, tears, cracks and other different forms of damage, meeting the repair needs of multiple industries.
| Product Type | Size Specification | Application Scenario |
|---|---|---|
| Ordinary Fast Repair Sheet | 1.5*35*10000mm/roll | Long-distance rubber scratches on conveyor belts |
| Ordinary Fast Repair Sheet | 3.0*50*10000mm/roll | Long-distance rubber scratches on conveyor belts |
| Ordinary Fast Repair Sheet | 3.4*400*10000mm/roll | Long-distance rubber scratches on conveyor belts |
| Reinforced Fast Repair Sheet | 2.8*35*10000mm/roll | Conveyor belt tears and structural damage |
| Reinforced Fast Repair Sheet | 3.6*100*10000mm/roll | Conveyor belt tears and structural damage |
| Reinforced Fast Repair Sheet | 4.8*400*10000mm/roll | Conveyor belt tears and structural damage |
Rubber Base Material
Mainly made of natural rubber or synthetic rubber such as neoprene and nitrile rubber, providing stable elasticity, adhesion and flexibility to adapt to different working environments.
Resin System
Phenolic resin, epoxy resin and other components are added to improve bonding force and curing speed, and enhance the strength and heat resistance of the repaired part.
Curing & Accelerating Agent
Reasonably control the curing reaction speed to ensure stable curing effect within the appropriate time and improve construction efficiency.
Filling Material
Calcium carbonate, talcum powder and other fillers improve product hardness and wear resistance, optimize overall performance and control production cost.
1. Conveyor Belt Repair in Industrial Transportation
Widely used in mining, coal, ports, logistics and other industries. It can repair scratches, tears and holes on site without disassembling the conveyor belt, quickly restoring the normal operation of the transportation system.
2. Rubber Product Maintenance
Suitable for tires, hoses, seals and other rubber products, repairing breakage, air leakage and aging problems, extending service life and reducing replacement costs.
3. Emergency Pipeline Repair
Used for emergency repair of cracks and leakage in chemical, petroleum, water supply and drainage pipelines, quickly stopping leakage and providing time for subsequent formal treatment.
4. Industrial Equipment Sealing
Applied to flanges, valves, reducers and other equipment sealing parts, providing temporary sealing for damaged seals to avoid environmental pollution and energy waste.
5. Daily Necessities Repair
Can be used for shoes, raincoats, plastic toys and other daily items, quickly solving damage problems and saving living expenses.
1. Stable Curing Speed
Compared with ordinary repair materials on the market, QMH conveyor belt fast repair sheet has more controllable curing time, avoids over-slow or over-fast curing, and is more suitable for on-site emergency construction.
2. Higher Bonding Durability
With professional semi-vulcanized layer design, the bonding fastness is better than similar products, and it is not easy to warp or fall off under long-term operation and vibration conditions.
3. Complete Product Specifications
Divided into ordinary type and reinforced type, with multiple size options, which can targeted match scratch repair and tear repair, avoiding material waste caused by single specification.
4. Mature Production Technology
Backed by a professional factory with intelligent production lines and ISO certification, the product performance is more stable, and the quality consistency is better than that of small-scale processing products.
5. Professional Technical Support
QMH provides supporting technical training and on-site guidance, which is more conducive to users' correct use and improves the success rate of repair, while most similar products only provide materials without supporting services.
1. Mining Conveyor Belt Tear Repair Case
A mining enterprise in northern China had a local tear accident in the conveyor belt during transportation. After using QMH reinforced conveyor belt fast repair sheet, the on-site workers completed the repair within 15 minutes, and the conveyor belt resumed normal operation. After one month of tracking, the repaired part remained intact without secondary damage.
2. Port Rubber Hose Leakage Repair Case
A port logistics company used QMH fast repair sheet to deal with the aging leakage of rubber conveying hoses. The product's good adhesion and flexibility effectively solved the leakage problem, avoiding the shutdown loss caused by immediate replacement of hoses.
3. Power Plant Conveyor Belt Scratch Repair Case
A thermal power plant used QMH ordinary fast repair sheet to deal with long-distance shallow scratches on the conveyor belt. The construction was simple and the effect was stable, which reduced the daily maintenance workload of the equipment department.
Company Background
Qingdao Quality Material Handling Co., Ltd. focuses on bulk material transportation, integrating R&D, production, sales and technical services, serving metallurgy, mining, power plants, ports, chemicals and other industries worldwide, with more than 30 years of industry experience.
Production Capacity
The production base covers an area of 50 acres, with intelligent production lines such as mixing, calendering and vulcanization. It is a national high-tech enterprise and participates in the formulation of national industry standards, with ISO three-system certification.
Service System
Provide technical consultation, system diagnosis, customized R&D and professional technical training services to support users in efficient use of conveyor belt fast repair sheet and other products.
Rubber base material: mostly based on natural rubber or synthetic rubber, such as chloroprene rubber, nitrile rubber, etc., which provides good elasticity, viscosity and flexibility for the strip, so that it can adapt to different repair objects and use environments.
Resin: The addition of an appropriate amount of resin can increase the viscosity and curing speed of the strip, and enhance the strength and heat resistance after repair. Common ones are phenolic resin, epoxy resin, etc.
Curing agent and accelerator: used to control the curing reaction speed of the rubber strip to ensure that it achieves the ideal curing effect within the appropriate time, making the repair process more efficient and reliable.
Filler: such as calcium carbonate, talcum powder, etc., can increase the volume and hardness of the rubber strip, reduce costs, and also play a certain role in regulating the performance of the rubber strip, such as improving its wear resistance and corrosion resistance.
1. Conveyor belt repair:
In the conveyor belt transportation system of mining, coal, ports, logistics and other industries, when the conveyor belt is scratched, torn, or has holes, the quick repair rubber strip can be quickly repaired on site without disassembling the conveyor belt to restore the normal operation of the conveyor belt, reducing production interruptions caused by conveyor belt failure.
2. Rubber product maintenance:
For various rubber products, such as tires, hoses, seals, etc., when there are problems such as breakage, air leakage, aging, etc., the quick repair rubber strip can quickly and effectively repair them, extend the service life of rubber products, and reduce replacement costs. Pipeline repair: In the pipeline systems of chemical, petroleum, water supply and drainage, etc., if cracks or leakages occur in the pipelines, the quick repair strips can be used as an emergency repair measure to quickly stop the leakage, prevent the accident from expanding, and buy time for subsequent permanent repairs.
3. Industrial equipment sealing:
In the sealing parts of some industrial equipment, such as flanges, valves, reducers, etc., when the seals are damaged or aged and cause leakage, the quick repair strips can be used for temporary sealing to ensure the normal operation of the equipment and avoid environmental pollution and energy waste caused by leakage.
4. Daily item repair:
In daily life, quick repair strips can also be used to repair various items, such as shoes, raincoats, purses, plastic toys, etc., to solve the problem of item damage quickly and conveniently, saving expenses and resources.
