An impact bed is a crucial component in conveyor systems, designed to absorb the shock and impact of falling materials at transfer points. By cushioning the load, QMH impact beds SURESUPPORT simple type protect the conveyor belt from damage and reduces maintenance costs. These beds are especially important in industries handling heavy and abrasive materials, such as mining and aggregates. Implementing a conveyor impact bed enhances the overall efficiency of material handling systems by minimizing belt wear and tear, preventing spillage, and ensuring smoother operation. This section will delve into the importance of rubber scrapers in material handling, examining their role in maintaining clean and efficient conveyor systems and exploring the various types of scrapers and their applications. The use of QMH impact beds not only extends the lifespan of conveyor belts but also improves workplace safety and reduces downtime, contributing to more reliable and cost-effective operations.
Send Inquiry1. Impact Absorption:
QMH impact beds SURESUPPORT simple type, a component of the combination system absorbs the shock and energy from falling materials. This is achieved through the use of energy-absorbing impact bars, typically made from ultra-high molecular weight (UHMW) polyethylene on top and a resilient material like rubber beneath. These bars dissipate the energy and reduce the impact force transferred to the belt.
2. Continuous Support:
The slider bed component provides a flat, continuous surface that supports the conveyor belt. This continuous support prevents belt sagging and reduces the risk of material spillage, ensuring that the belt runs smoothly and remains aligned.
3. Combined Benefits:
By integrating these two functionalities, the slider/impact bed combination system ensures that the belt is protected from impact damage while also maintaining optimal tension and alignment. This dual functionality helps to extend the life of the conveyor belt and reduces maintenance requirements.
QMH impact beds SURESUPPORT simple type are engineered with several innovative features that set them apart from conventional impact beds. These features are designed to provide optimal protection, improve performance, and ensure the durability of the conveyor system.

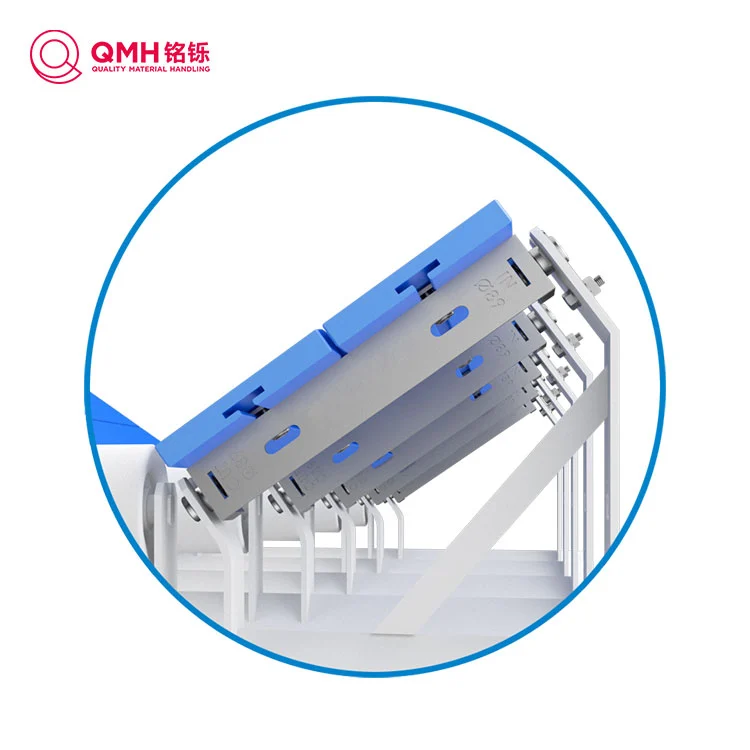

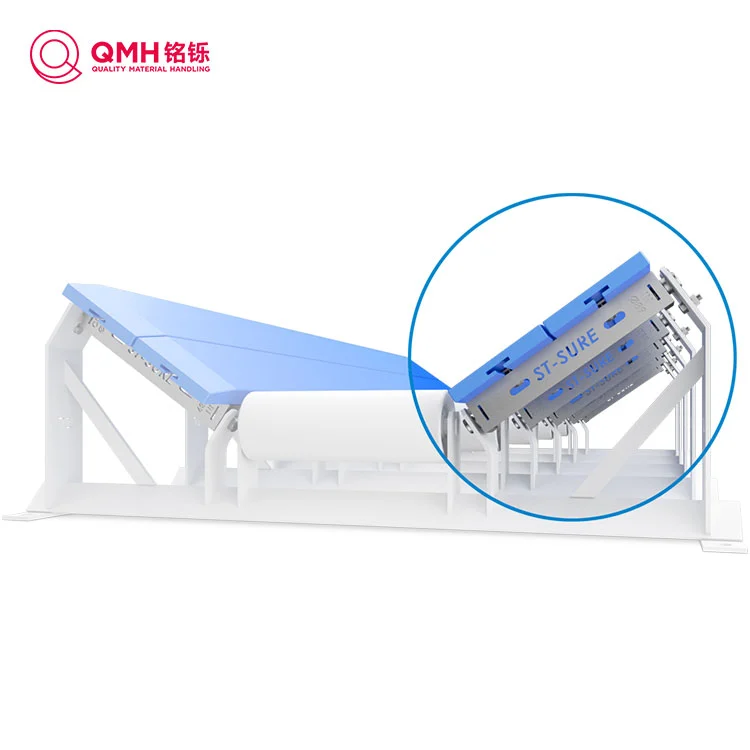

The simple impact bed is a combination of idlers and impact bars, rolling friction.
Adapt traditional idler brackets, suitable for a variety of trough angles.
Quick installation, only need to adapt the bracket and impact bars to complete the on-site modification, the modification time is faster.
Suitable for small-scale material transportation of <1000T/H.
1. Robust Construction:
QMH impact beds are built using high-strength materials, typically heavy-duty steel for the frames, providing a solid and stable foundation. This robust construction ensures that QMH impact beds can withstand the harsh conditions of industrial environments, such as mining and quarrying, without deforming or failing under heavy impact forces.
2. Energy-Absorbing Impact Bars:
The impact bars used in QMH impact beds are designed to absorb and dissipate the energy from falling materials, reducing the force transmitted to the conveyor belt. These bars often feature a top layer of ultra-high molecular weight polyethylene, which provides a smooth surface for the belt to glide over, and a bottom layer of resilient rubber or similar material that enhances shock absorption. This combination effectively mitigates impact forces and protects the conveyor belt from damage.
3. Modular Design:
One of the standout features of QMH impact beds is their modular design. This design allows for easy installation, maintenance, and customization. Modular components can be quickly replaced or reconfigured as needed, minimizing downtime and maintenance efforts. This flexibility is crucial for operations that require quick adjustments and repairs to maintain productivity.
4. Adjustable Supports:
QMH impact beds are equipped with adjustable supports that can be fine-tuned to match the contour of the conveyor belt. These supports ensure consistent contact and impact absorption across the entire width of the belt, preventing belt sagging and reducing the risk of material spillage. Properly adjusted supports also contribute to improved belt tracking and reduced wear.
5. Enhanced Safety Features:
Safety is a critical consideration in the design of QMH impact beds. These beds are designed to prevent sudden failures and reduce the likelihood of accidents caused by belt damage. By effectively absorbing impact forces and maintaining belt integrity, QMH impact beds enhance the overall safety of conveyor systems, protecting both equipment and personnel.
The innovative features of superior impact beds not only enhance performance but also lead to significant reductions in maintenance costs and operational downtime.
1. Prolonged Conveyor Belt Life:
By absorbing the impact forces of falling materials, QMH impact beds protect the conveyor belt from excessive wear and damage. This protection extends the lifespan of the belt, reducing the frequency of replacements and the associated costs. The durable construction of the impact bars also ensures that they can withstand repeated impacts without deteriorating, further contributing to the longevity of the conveyor system.
2. Minimized Downtime:
The modular design of superior impact beds allows for quick and easy replacement of individual components. This feature is particularly beneficial when repairs are needed, as it minimizes the downtime required to get the conveyor system back up and running. Operations can replace worn or damaged impact bars without having to disassemble the entire impact bed, ensuring that maintenance activities are completed swiftly and efficiently.
3. Reduced Maintenance Efforts:
QMH impact beds are designed for easy maintenance, with accessible components that can be inspected and replaced without extensive disassembly. This ease of maintenance reduces the time and labor required to keep the impact beds in optimal condition, allowing maintenance teams to focus on other critical tasks. Regular inspections and timely replacements of impact bars and supports ensure that the impact bed continues to provide effective protection, preventing unexpected breakdowns and costly repairs.
4. Enhanced Operational Efficiency:
By preventing material spillage and maintaining proper belt alignment, QMH impact beds contribute to smoother and more efficient conveyor operations. This efficiency reduces the strain on other conveyor components, such as rollers and pulleys, which in turn decreases the overall maintenance requirements of the conveyor system. Improved operational efficiency also leads to higher productivity, as materials are transported more reliably and with fewer interruptions.
5. Lower Total Cost of Ownership:
Investing in QMH impact beds can lead to lower total cost of ownership for conveyor systems. The initial investment in high-quality impact beds is offset by the savings in maintenance costs, reduced downtime, and extended equipment life. Over time, the benefits of superior impact beds translate into significant cost savings and improved profitability for industrial operations.
In the realm of material handling, the durability and efficiency of conveyor belts are paramount to maintaining seamless operations and minimizing downtime. The QMH impact bed conveyor is a critical component designed to absorb the shock of falling materials, thereby protecting conveyor belts from damage and enhancing their longevity. This section will explore the key features and benefits of QMH impact beds and provide case studies showcasing their effectiveness in various industrial applications.
The effectiveness of QMH impact beds is demonstrated through numerous case studies across different industries. These real-world examples highlight how QMH impact beds have improved operational efficiency, reduced maintenance costs, and extended the life of conveyor belts.
QMH impact bed combination systems are particularly effective in applications where materials are loaded onto the conveyor belt from significant heights or where the conveyed materials are heavy and abrasive. Here are some specific applications where these systems excel:
1. Mining and Quarrying:
In mining and quarrying operations, materials such as ores, rocks, and minerals are often dropped onto conveyor belts from considerable heights. The heavy and abrasive nature of these materials can cause significant impact damage to the belt. QMH impact bed combination systems provide the necessary protection to absorb these impacts and support the belt, ensuring continuous and efficient operation.
2. Aggregate Processing:
Aggregate processing involves handling materials like sand, gravel, and crushed stone, which can be rough on conveyor systems. The combined cushioning and support of QMH impact bed systems help to manage the impact and reduce wear on the belts, improving the efficiency and longevity of the conveyor system.
3. Bulk Material Handling:
Industries that handle bulk materials, such as coal, grain, and cement, benefit greatly from QMH impact bed combination systems. These systems ensure that the conveyor belts remain stable and aligned under heavy loads, preventing spillage and maintaining smooth operations.
4. Recycling and Waste Management:
In recycling and waste management facilities, conveyor belts often transport various materials, including metals, plastics, and glass. QMH impact bed combination system protects the belt from the impact of heavy or sharp objects and ensures that materials are conveyed efficiently without causing damage to the system.
5. Ports and Terminals:
Ports and terminals that handle the loading and unloading of bulk materials from ships and trucks require robust conveyor systems. QMH impact bed combination systems provide the necessary support and impact
