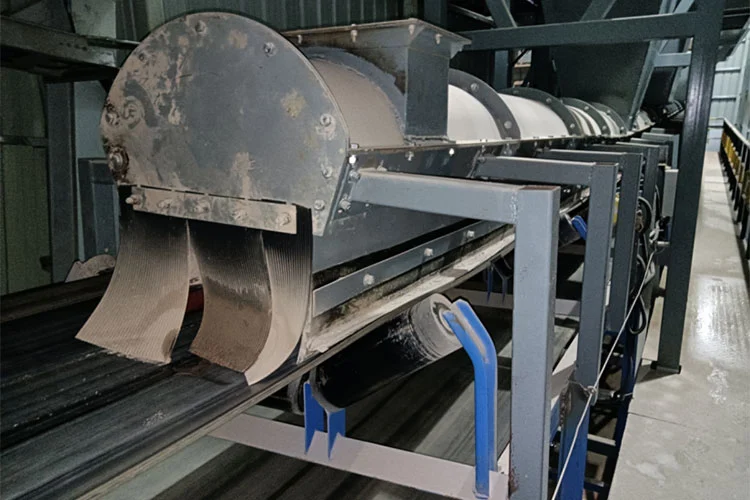

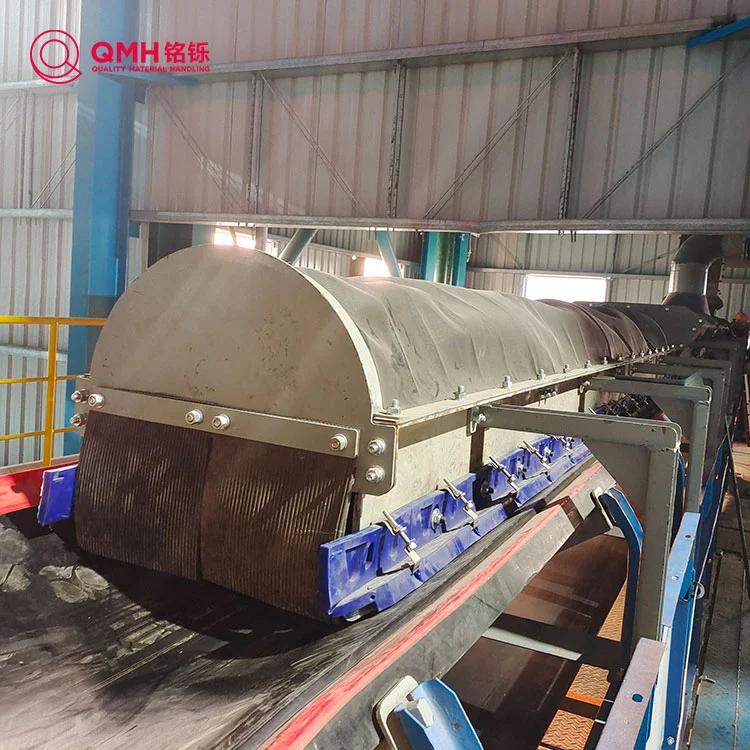

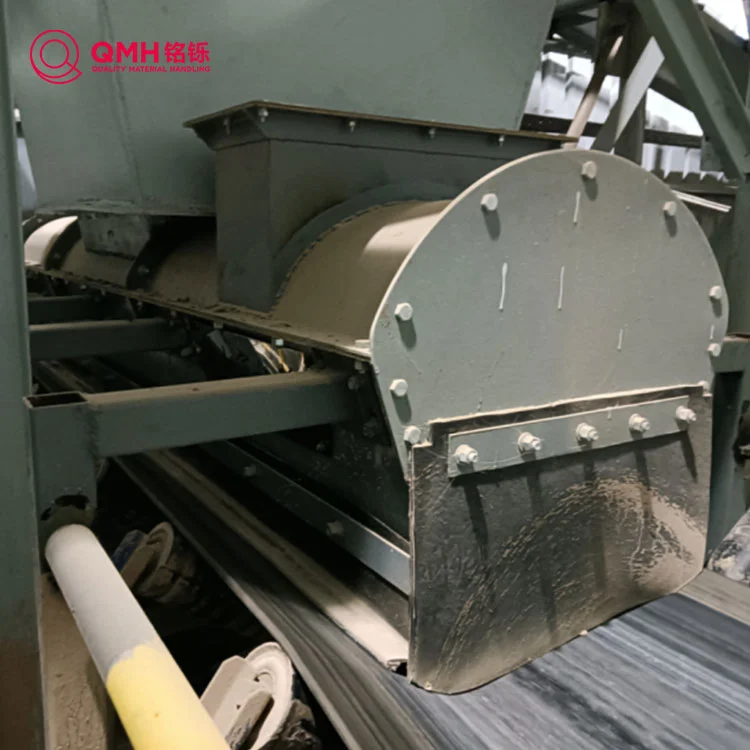

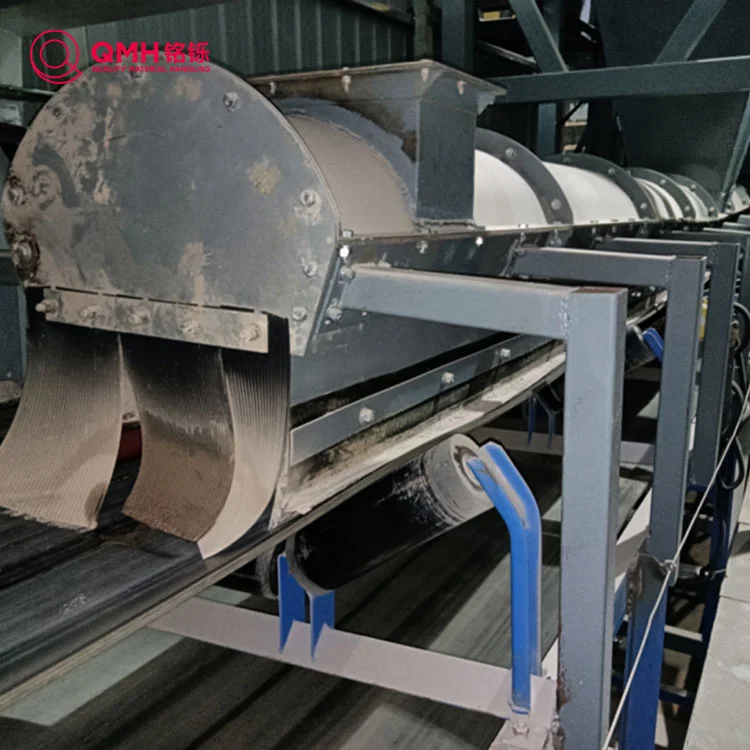

QMH’s Conveyor Dust Curtains help in the reduction of dust throughout the conveyor transfer point. It is mainly installed at a specific position of the conveyor to prevent the spread of dust and play a role of isolation and sealing. For example, during the material transportation process, when the material is transferred from one link to another, it is easy to generate dust. QMH conveyor dust proof curtains can effectively prevent the dust from entering the working environment or other equipment areas.
Send InquiryThere are many ways to install the conveyor dust proof curtains. Some curtains have metal frames and can be directly fixed to the frame or housing of the conveyor by bolts, clamps, etc. Some curtains are installed by hooks or Velcro, which makes it easy to remove and replace the curtains. For example, in some occasions where the interior of the equipment needs to be cleaned or inspected frequently, conveyor dust proof curtains installed with hooks can be quickly removed, saving time.
Dust-proof curtain structure that imitates the filter principle, effectively controls air flow speed and reduces dust diffusion
Customized to various widths
Easy replacement and installation
Special synthetic rubber, suitable for various working conditions that generate dust
Recommended installation is one dust curtain without slits closest to loading zone, followed by one dust curtain with slits at exit of skirt board. Additional dust curtains may be installed to reduce air movement and isolate dust suppression or dust collection systems for additional dust control.
Allows Dust to Settle – by slowing the air velocity down and allowing the airborne dust and particles to fall to the belt.
Anti-Static / ISO 284 Flame Retardant – materials are used in the PVC and 2 ply fabricate constructed curtains.
Simple Adjustment – on conveyors where dust is a problem, in below ground and above ground mining, pulp and paper.
Curtains form a plenum that slows air velocity, allowing airborne particles to return to belt

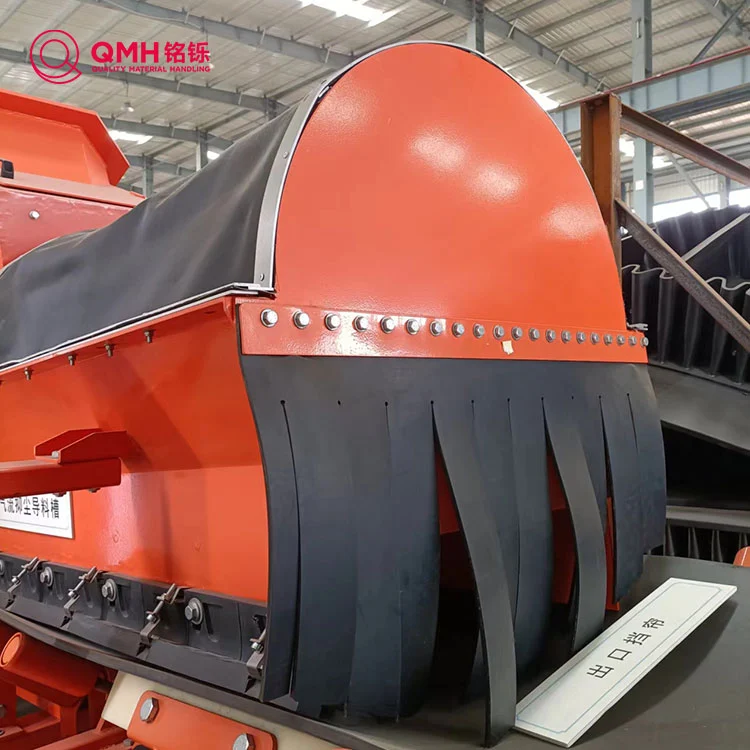

Slit curtains conform to belt load without pushing material off conveyor
Curtains hang to 1 inch (25 mm) below normal material profile on belt

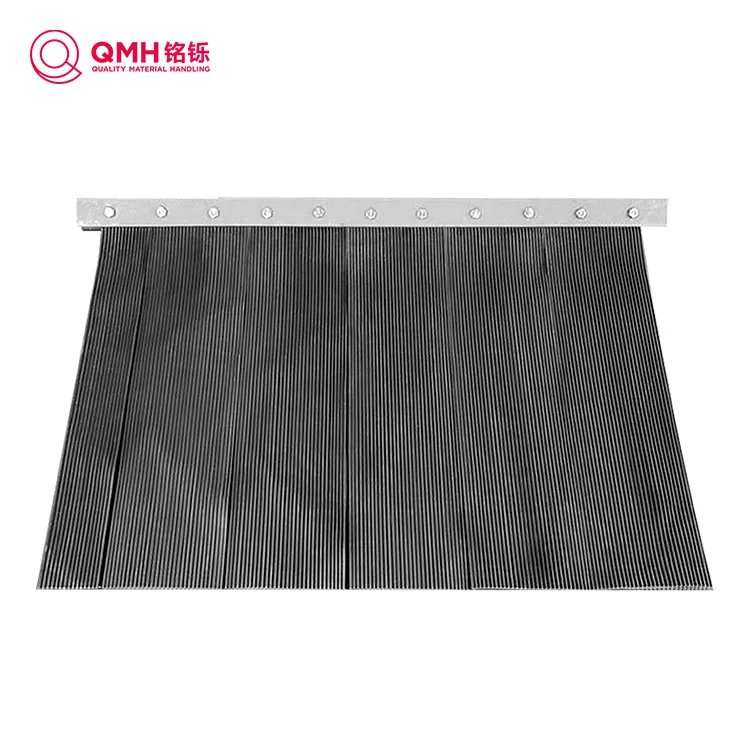

Curtain bolts into steel frame for simple replacement
Rugged 1/4-inch (6 mm) rubber construction provides extended service in tough conditions
When the dust proof curtain is seriously damaged, such as large-area tearing or loss of elasticity, it needs to be replaced in time. Generally speaking, the service life of the rubber curtain ranges from a few months to a few years, depending on the use environment and intensity. For example, in a harsh chemical environment, the rubber curtain may need to be replaced more frequently, while in a general grain transportation environment, the service life may be relatively long.
Our technicians and engineers are available to provide expert advice and assistance on this product and all of your bulk material handling questions and problems.
