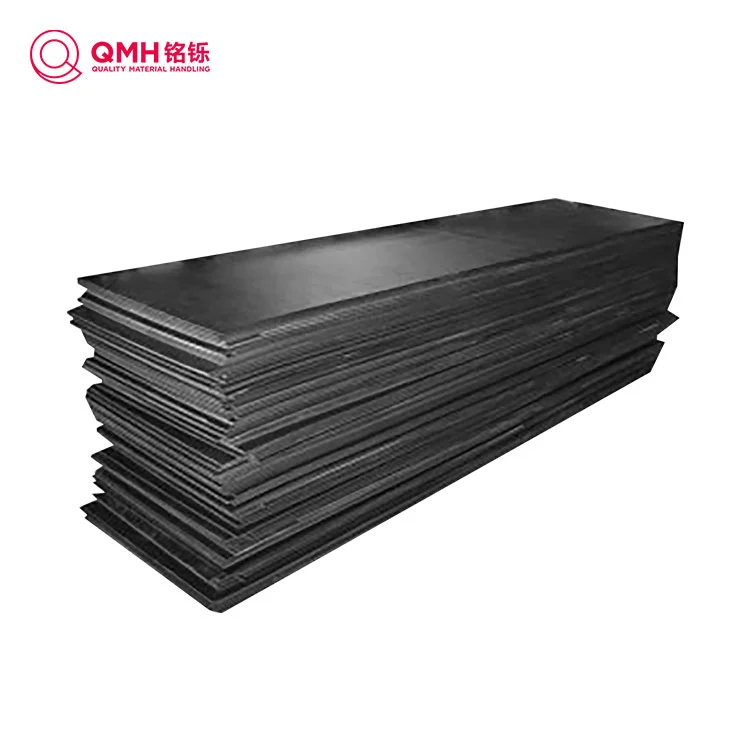

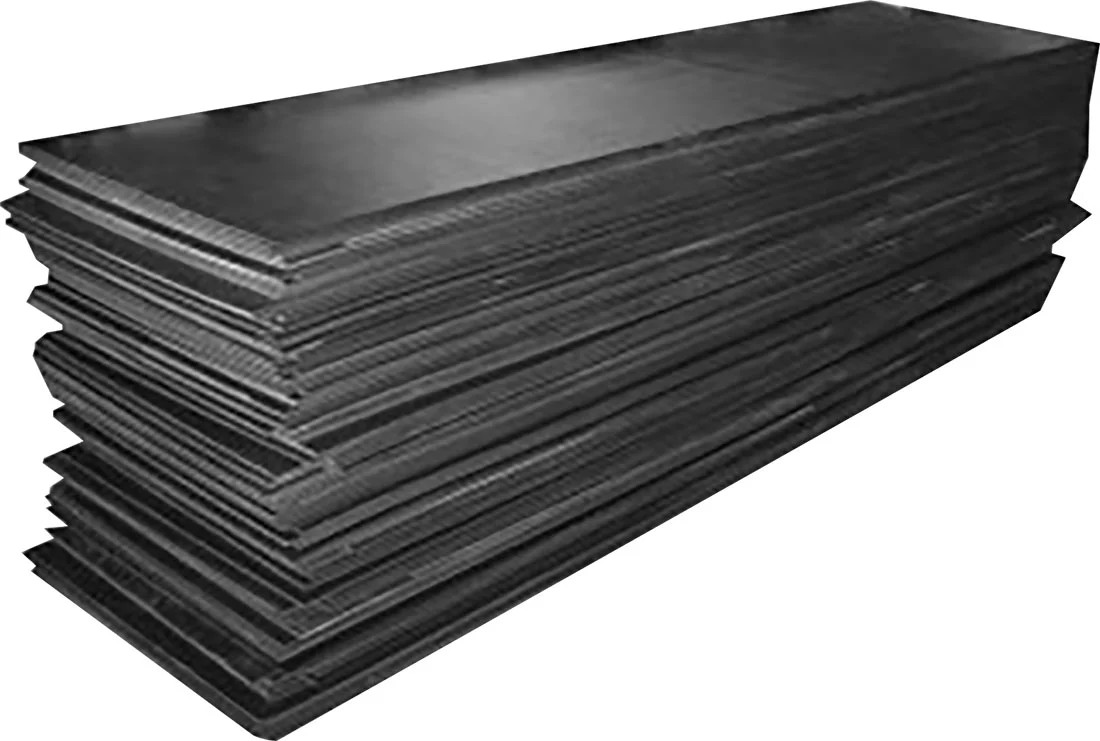

The wear-resistant QMH polymer lining not only retains the high impact strength, low friction coefficient, excellent self-lubrication performance and other qualities, but also can meet the different performance needs of customers. Such as flame retardant polymer polyethylene board, the QMH polymer lining is difficult to ignite, can be automatically extinguished within 3-10 seconds after the fire source, and does not drop, the smoke is small, volatile gas is harmless to the human body, after the national flame retardant materials laboratory test, the product is identified as green environmental protection materials, with high promotion and use value. In addition, there are wear-resistant polymer polyethylene board, high temperature resistant polymer polyethylene board, high strength polymer polyethylene board, etc., wear-resistant coal bunker liner board performance is excellent
Send Inquiry
As a professional provider in the bulk material transportation field, Qingdao Quality Material Handling Co., Ltd. (QMH) integrates decades of R&D with advanced manufacturing. Our production base in Shandong, China, is an ISO-certified facility spanning 20,000 square meters, equipped with fully intelligent production lines. With over 30 years of expertise, the QMH team focuses on solving on-site challenges through customized QMH Polymer Lining solutions. We are recognized as a national high-tech enterprise, ensuring that every Polymer Lining delivered meets rigorous industry standards for durability and performance.
The following table outlines the typical physical and mechanical properties of the QMH Polymer Lining series compared to standard industrial materials.
| Property | Unit | QMH Standard Value | Testing Method |
|---|---|---|---|
| Molecular Weight | g/mol | 5.0 - 9.0 Million | Viscosity Method |
| Density | g/cm³ | 0.93 - 0.97 | ASTM D792 |
| Coefficient of Friction (Dynamic) | - | 0.07 - 0.11 | ASTM D1894 |
| Impact Strength (Notched) | kJ/m² | ≥ 120 | ISO 179 |
| Tensile Strength at Yield | MPa | ≥ 22 | ASTM D638 |
| Working Temperature Range | ℃ | -195 to +120 | Continuous Use |
| Flame Retardancy | sec | Self-extinguish (3-10s) | GB/T 2408 |
High Wear Resistance
The wear resistance of QMH Polymer Lining is significantly higher than most engineering plastics. It is approximately 5.3 times more resistant than PTFE and 6 times more than POM. In abrasive environments like iron ore or coal handling, it maintains structural integrity far longer than carbon steel.
Self-Lubrication and Anti-Sticking
The smooth surface and low friction coefficient prevent materials from bonding to the liner. This is critical for moisture-heavy materials or powdered coal, where "bridging" or "rat-holing" in silos often occurs.
Impact and Corrosion Stability
With an impact strength 5 times that of ABS, these linings absorb energy without cracking. Furthermore, the chemical stability allows the Polymer Lining to resist acids, alkalis, and oils, making it suitable for chemical reactors and tailings pipelines.
Environmental and Safety Compliance
QMH offers specialized flame-retardant and anti-static versions. Our green-certified materials produce minimal smoke and no harmful volatile gases during high-temperature exposure, ensuring a safer working environment.
Compared to traditional metal wear plates, QMH Polymer Lining offers distinct operational benefits:
The versatility of QMH Polymer Lining makes it an essential component across various sectors:
Mining and Coal: Used in coal bunkers, chutes, and ore bins to solve blocking issues in soft coal and moisture-rich powder environments.
Power Generation: Applied in ash removal systems and coal conveying pipelines to minimize equipment maintenance.
Cement and Steel: Protects raw material bins and hoppers from the constant abrasion of coke and iron ore.
Food and Pharma: FDA-compliant food-grade linings are available for hoppers and conveyor components where hygiene is paramount.
QMH provides a one-stop service for Polymer Lining requirements. Our technical team offers system diagnostic services and can customize the shape, size, and thickness of the boards based on your specific transport distance, volume, and material characteristics.
Installation: We provide guidance on modular installation and mechanical fastening, ensuring that the Polymer Lining is securely fitted to your existing steel or concrete infrastructure with minimal downtime.
1. Super wear-resistance: The wear resistance is the highest among plastics, being 5. 3 times higher than PTFE and 6 times higher than POM.
2. Anti-sticky: Smooth surface with low friction coefficient, not prone to bonding with materials, and has a low thermal deformation temperature under stress conditions.
3. Self-lubricating: Good self-lubricating property, the friction coefficient is only 0. 07-0. 11.
4. Impact resistance: The impact strength is 2 times that of PC and 5 times that of ABS.
5. Oil and acid resistant: High chemical stability, strong corrosion resistance, resistant to acids and alkalis, resistant to oil, not prone to aging.
6. High temperature and cold resistance: Can be used for long-term operation at a working temperature of 120℃.
7. Cold resistance: The cold resistance temperature can reach -195℃.
8. Food grade: Customizable food grade, used in food and pharmaceutical industries.
9. Customizable: The shape, size, and thickness of the QMH polymer lining can be customized according to needs.
QMH polymer lining has retardant and anti static characteristics, used for coal chute liner board, silo grain liner board, coal discharge ditch bunker liner board, to solve the concrete pouring often caused by bonding and silo blocking problems, the use of ultra-high molecular weight polyethylene plate self-lubrication and non-adhesive material, low friction coefficient, especially in soft coal mining, moisture, coal powder blocking situation, Flame retardant anti static polymer polyethylene wear lining effectively solved the problem of silo blocking.
Mining industry: Used as the lining of ore conveying pipelines, chutes, ore bins, etc., which can effectively resist the wear and impact of ores .
Coal industry: Installing polymer wear-resistant linings in parts such as coal bunkers, coal chutes, and coal conveying pipelines can solve the problems of coal adhesion, bin clogging, and equipment wear.
Cement industry: Using polymer wear-resistant linings in raw material bins, finished product bins, and conveying equipment in the cement production process can improve the wear resistance and service life of equipment.
Power industry: Widely used in coal conveying systems, coal bunkers, ash removal systems, etc. of thermal power plants to reduce equipment maintenance costs.
Steel industry: Used as the lining of storage and conveying equipment for materials such as iron ore and coke, such as bins and belt conveyors.
Chemical industry: Can be used to make linings for various chemical reactors, storage tanks, pipelines, etc., to prevent corrosion and wear of chemical materials on equipment.
Food and pharmaceutical industries: Polymer wear-resistant linings that meet hygiene standards can be used in parts of food processing equipment and pharmaceutical production equipment, such as conveyor belts and hoppers.
Convenient installation: Generally, modular design is adopted, which can be customized according to the shape and size of the equipment. It is convenient and fast to install and easy to disassemble and replace, reducing maintenance costs and time.
Simple maintenance: During use, only need to regularly check the wear condition of the lining. If severe wear is found, replace the damaged lining in time. There is no need for large-scale maintenance of the entire equipment.
