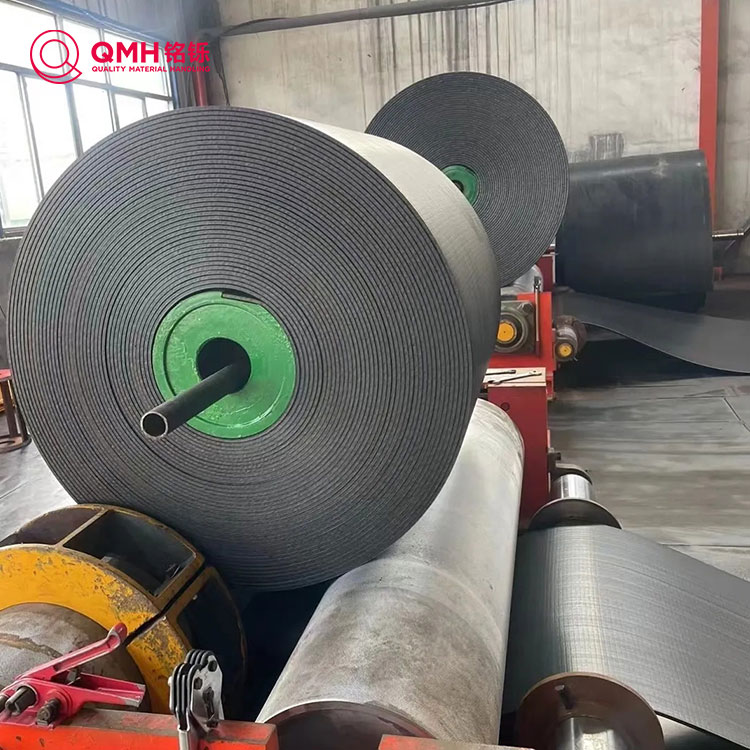

QMH solid woven conveyor belt is a flexible strip designed to transmit motion, power, or material from one location to another by wrapping around two or more pulleys. It is primarily used in conveyor systems to carry and transport materials.QMH solid woven conveyor belts offer a combination of high tensile strength, durability, and specialized properties that make them ideal for a wide range of industrial applications.
Send InquiryCore Material: The core of QMH solid woven conveyor belt is made from a high-strength woven fabric, typically woven from polyester and cotton fibers. This fabric provides high tensile strength, low elongation, lightweight construction, impact resistance, tear resistance, and good troughing ability.
Cover Layer: The cover layer is made from materials such as rubber, rubber-plastic blends, or PVC resin, which are flame-resistant. These materials provide additional protection and durability to the belt.
High Tensile Strength: Due to its woven fabric core, QMH solid woven conveyor belt has high tensile strength proportional to its weight, making it suitable for heavy-duty applications.
Excellent Impact and Tear Resistance: The optimized body structure and internal bond strength of the pressed PVC belt enhance its impact and tear resistance compared to ordinary PVC conveyor belts.
Good Joint Performance: QMH belt can be joined using mechanical or vulcanized joints, ensuring high joint efficiency and allowing for quick joint completion even in poor working conditions.
Fire and Anti-Static Properties: QMH solid woven conveyor belt is designed to meet fire and anti-static requirements, making it suitable for use in environments where these properties are critical, such as underground coal mines.
Resistance to Oil, Chemicals, and Moisture: QMH belt is resistant to oil, chemicals, and moisture, providing long-lasting durability in harsh environments.
QMH solid woven conveyor belts are widely used in various industries, including mining, coal handling, material conveying in ports, and other industrial applications. They are particularly suitable for environments where flame resistance, anti-static properties, and heavy-duty performance are required.
1. QMH standard PVC conveyor belts are suitable for applications with incline angle below 16° in dry environments.
2. QMH PVG conveyor belts are suitable for applications with incline angle below 18° in humid environments.
3. Coal mine material transportation:In underground coal mines, integral fabric core conveyor belts are used to transport coal from the mining face to the surface. Due to the complex environment of coal mines, the strength and wear resistance of the conveyor belts are extremely high. QMH solid woven conveyor belts ensure the safety and efficiency of coal transportation with their high strength and wear resistance.
4. Power plant ash treatment:In power plants,QMH solid woven conveyor belts are used to transport ash from the boiler discharge port to the treatment plant. The conveyor belt needs to withstand high temperatures and ash wear, and also have flame retardant properties. QMH solid woven conveyor belt can meet these requirements and ensure the safety and efficiency of power plant ash treatment.
Based on the characteristics of the cover layer, QMH solid woven conveyor belts are classified into two types:
PVC Solid Woven Conveyor Belt:Suitable for dry operating conditions with an inclined angle no greater than 16 degrees. The cover thickness can range from 0.5mm to 4mm.
PVG Solid Woven Conveyor Belt:Suitable for wet operating conditions with an inclined angle no greater than 20 degrees. It has additional resistance to wetness, slip, low temperatures, and wear. The cover thickness can range from 1mm to 8mm.
QMH solid woven conveyor belts adhere to strict international standards such as BS3289, MT914-2008, and HG2805 to ensure product quality and performance. QMH solid woven conveyor belts are manufactured using advanced weaving technology and undergo rigorous testing to meet customer requirements and industry standards.
