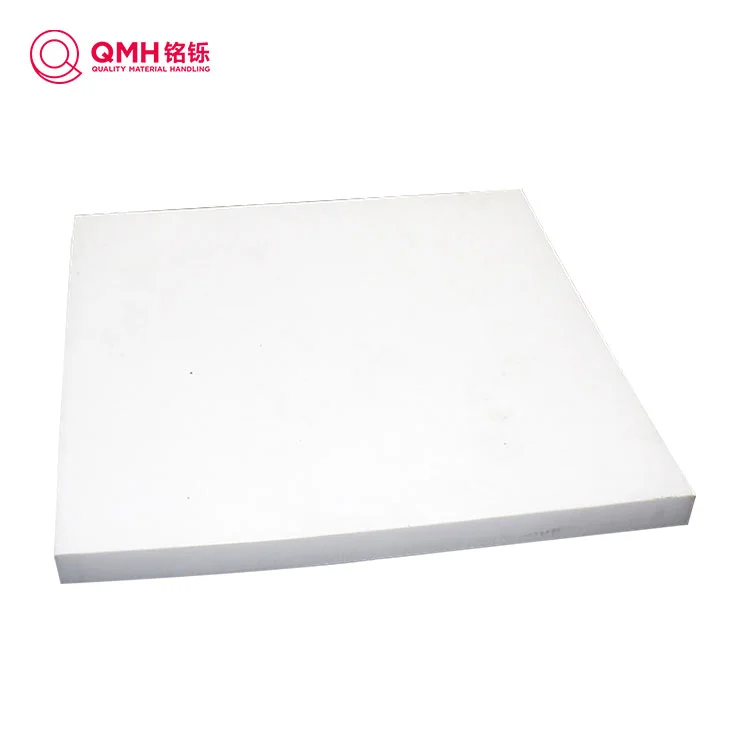

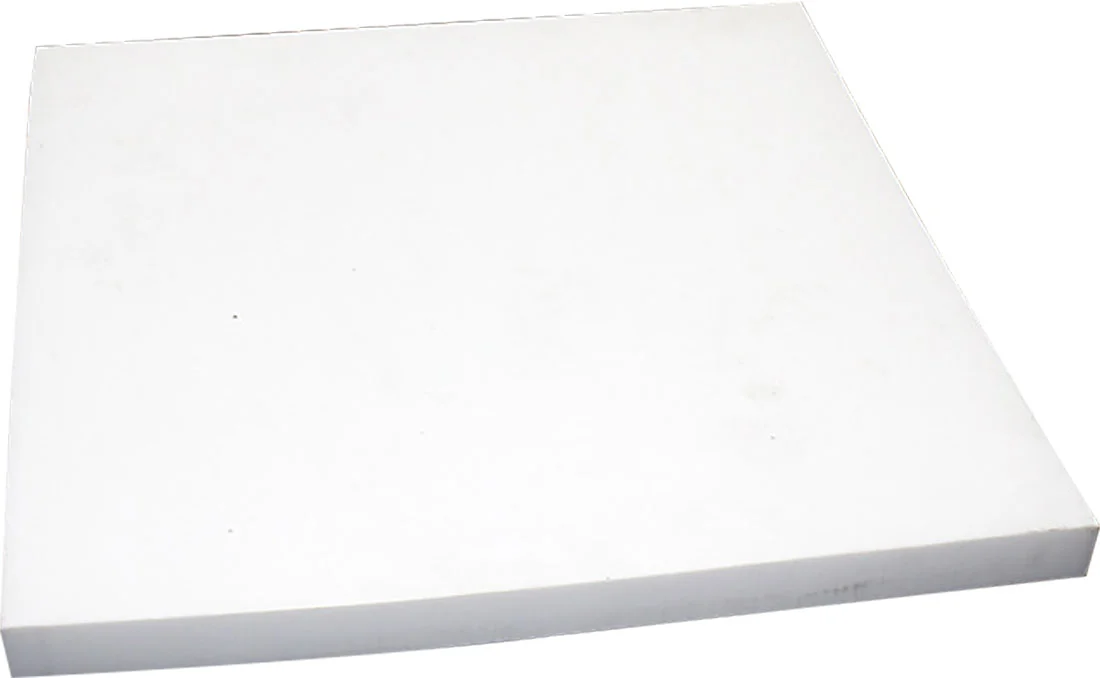

Teflon Anti-stick Wear Lining

Features:

Anti-sticky surface: Almost no material adheres to the the surface of QMH Teflon anti-stick wear lining.

Non-stick:Heat resistance: Teflon coatings have excellent heat and cold resistance.

Sliding property: Teflon coatings have a low coefficient of friction.

Anti-wetting: The surface of the Teflon coating does not adhere to water and oil. If a small amount of dirt adheres, it can be easily wiped off.

Wear resistance: Under high loads, it has excellent wear resistance. Under certain loads, it possesses both wear resistance and non-stick properties.

Corrosion resistance: Teflon is almost unaffected by chemicals, protecting parts from any kind of chemical corrosion.

Customizable: The shape, size, and thickness of the liners can be customized as needed.

Low coefficient of friction: The coefficient friction of QMH Teflon anti-stick wear lining is small

Non-toxic: QMH Teflon anti-stick wear lining is non-toxic and tasteless, with physiological inertia, no harm to people and the environment

Advantages:

1. Improve conveying efficiency

Due to the anti-stick properties of QMH Teflon wear linings, materials can maintain good fluidity in conveying equipment. For example, in pneumatic conveying systems, there is no material sticking to the inner walls of the pipes, and the effective cross-sectional area of the pipes will not decrease due to material accumulation, thus maintaining a high gas flow rate and material conveying speed. At the same time, materials will not accumulate on key components of the conveying equipment (such as the screw blades of screw conveyors, the surface of conveyor belts, etc. ), reducing the operating resistance of the equipment and allowing it to operate at higher efficiency.

2. Reduce maintenance costs

The non-stick properties of QMH Teflon wear linings make it difficult for materials to stick to the conveying equipment, reducing the frequency and difficulty of cleaning. For traditional conveying equipment, if materials stick severely, it may be necessary to frequently shut down for manual cleaning, which not only wastes time but also increases labor costs. After using Teflon liners, there is very little residue on the surface of the equipment, and even if cleaning is needed, it is relatively easy. In addition, the non-sticking of materials also reduces wear on the equipment due to material accumulation, extending the service life of the equipment and further reducing maintenance costs.

3. Ensure material quality

During the conveying process, materials will not be damaged due to sticking to the surface of the equipment. For example, for materials such as food and pharmaceuticals that have high quality requirements, the hygienic, non-toxic, and non-stick properties of Teflon liners can prevent materials from being contaminated and damaged. For granular materials, the shape and size of the particles will not change due to sticking, ensuring that the quality of the materials meets the requirements when entering the next production stage. For viscous materials, the composition ratio will not change due to the residue of some materials in the conveying equipment, ensuring the stability of product quality.

Applications

1. Powder Material Conveying

In the conveying process of food powders such as flour, starch, and milk powder, QMH Teflon anti-stick wear linings can effectively prevent the powder from sticking to the conveying pipes and equipment surfaces. For example, in the pneumatic conveying system of a milk powder production plant, milk powder particles flow rapidly through the pipes and are prone to adhere to the inner walls of the pipes due to static electricity and other reasons. The low surface energy of QMH Teflon anti-stick wear lining makes their surfaces smooth, making it difficult for milk powder particles to adhere, ensuring smooth conveying and also avoiding material loss and contamination.

For powdered raw materials in the chemical industry, such as pigments and paint powders, which often have high viscosity, QMH Teflon anti-stick wear linings can be applied to conveying equipment such as screw conveyors and pneumatic conveying pipes. Taking the screw conveyor as an example, when conveying pigment powders, the non-stick property of the liner can prevent the powder from accumulating on the screw blades and the conveying trough walls, ensuring that the material is conveyed evenly according to the set flow rate and speed.

2. Granular Material Conveying

In the conveying of plastic granules, fertilizer granules, etc., QMH Teflon anti-stick wear linings play an important role. In the extrusion production line of plastic granules, the granules are conveyed from the hopper through pipes to the extruder. QMH Teflon anti-stick wear linings installed inside the hopper and conveying pipes can prevent the plastic granules from sticking together due to friction and static electricity, or from adhering to the pipe walls. This not only improves conveying efficiency but also ensures the quality of the plastic granules, avoiding the impact on the extrusion process due to granule agglomeration.

For granular foods, such as nuts, candies, etc., QMH Teflon anti-stick wear linings are also very suitable. For instance, in the candy packaging workshop, candies are conveyed to the packaging equipment through a conveyor belt. As the surface material of the conveyor belt, QMH Teflon anti-stick wear lining can prevent the candies from sticking to the conveyor belt, ensuring the integrity of the candy appearance, and facilitating cleaning, reducing downtime due to material adhesion.

3. Viscous Material Conveying

Materials with high viscosity, such as asphalt, resin, and glue, have always been a challenge to convey. QMH Teflon anti-stick wear linings provide an effective solution to this problem. After installing QMH Teflon anti-stick wear linings inside the tank of an asphalt transport truck, the asphalt can flow out more smoothly during unloading, reducing residue. Because the Teflon liner's surface almost does not stick to the asphalt, it reduces the difficulty of cleaning the tank.

In resin production enterprises, when the resin is conveyed from the reactor through pipes to storage tanks or packaging equipment, QMH Teflon anti-stick wear lining can prevent the resin from sticking in the pipes, ensuring the continuity of the conveying. Even in high-temperature environments, the heat resistance of Teflon liners can ensure that their anti-stick performance is not affected, which is particularly important for the conveying of thermoplastic resins.
