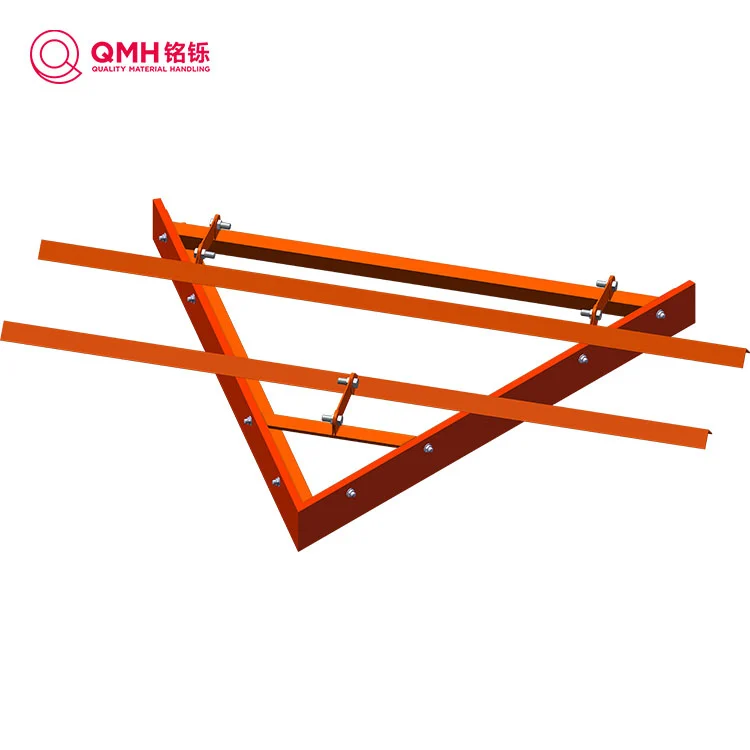

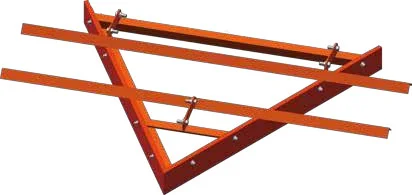

QMH V-type Polyurethane Return Belt Scraper is suitable for cleaning the non-working surface of the conveyor belt, installed at the return section redirection roller and the tail roller inlet. Conveyor carries high-quality primary and secondary belt scrapers. They’re designed to work with various belt sizes, speeds, and industries.
Send InquiryBlade size: One-piece 60-degree angle seamless polyurethane blade, height 120mm, thickness 20mm, single-side length equal tobelt width, material division width equal to belt width;

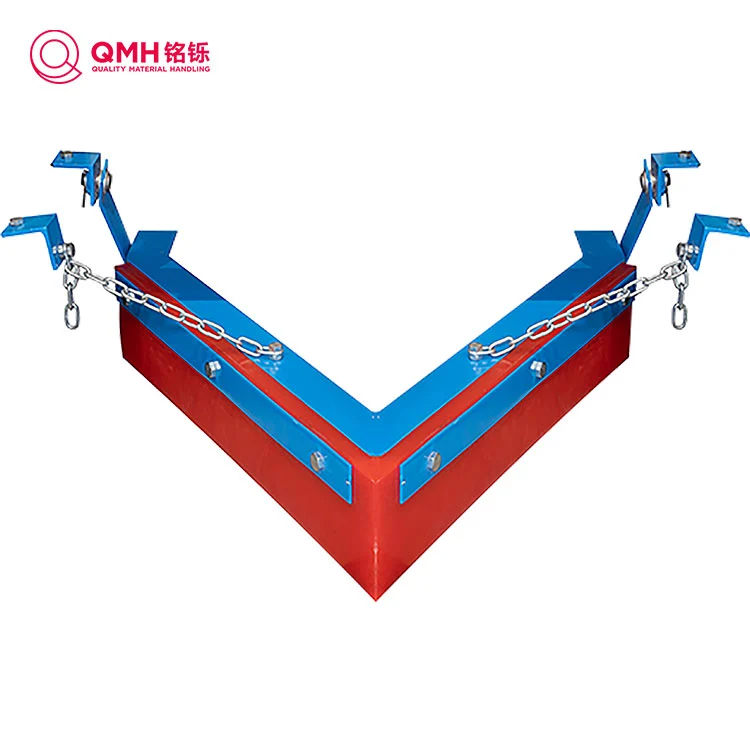

Bracket structure: Front chain fixed, rear angle iron fixed (angle iron width adjustable), simple structure.
QMH V-type Polyurethane Return Belt Scrapers are installed on the non-working surface of conveyor belt, the main purpose is to remove the attached bulk material on the non-working surface of the belt and discharge materials to both sides.
QMH V-type Polyurethane Return Belt Scrapers help to prevent buildup and ensure efficient operation. They reduce the risk of belt damage, premature wear, and worker accidents by eliminating potential hazards associated with material accumulation.
Functionality: Designed to clean the belt's surface on its return path, V-type Polyurethane Return Belt Scraper prevent debris from being carried back into the pulleys or conveyor machinery.
Design: A non-contact V-type Polyurethane Return Belt Scraper that uses a plow-shaped blade to divert material off the side of the conveyor. The design ensures minimal wear on the return belt while effectively removing residue.
Application: Useful in systems where material spillage on the return path could lead to maintenance issues or potential hazards.
